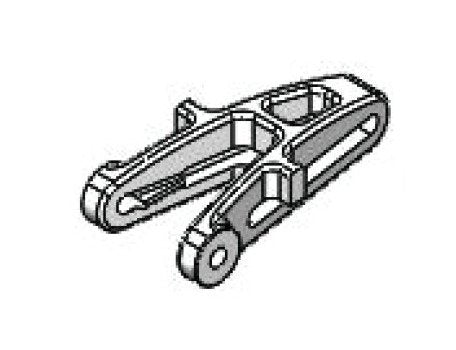

SpanTech Center Plain PillowTop Chain
SpanTech Center Plain PillowTop Chain
SKU:CHA-238552
Upgrade your conveyor system with our durable, sanitary, and precise SpanTech PillowTop Chain for efficient product handling.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
SpanTech Center Plain PillowTop Chain
$399.99
Quantity: 1
Claim Your Seller Account
SpanTech Center Plain PillowTop Chain
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your conveyor system with the SpanTech Center Plain PillowTop Chain featuring a 50mm pitch size and innovative curved design that minimizes chordal action. Perfect for food industry applications, this chain offers a tight turning radius, durability, and sanitary benefits. Compatible with dead plate transfers for efficient product handling while being lightweight yet robust, this chain ensures precise and gentle handling of delicate products.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Color
Plain
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Acetal
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.
What Is Chordal Action What Is Chordal Action
The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
