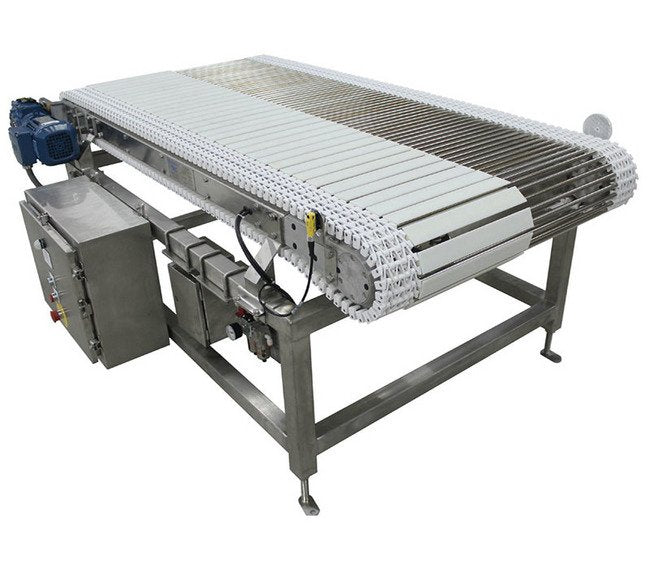

SpanTech High Speed Switch Conveyors
SpanTech High Speed Switch Conveyors
SKU:CON-3473de
Enhance product flow with SpanTech High Speed Switch Conveyors: fast, reliable, and highly configurable. Rated for 24/7 operation with a maximum speed of 350 ft/min.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
SpanTech High Speed Switch Conveyors
$7,499.99
Quantity: 1
Claim Your Seller Account
SpanTech High Speed Switch Conveyors
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SpanTech High Speed Switch Conveyors effectively divide product flow with precision and speed, boasting a remarkable switch capacity of up to 300 parts per minute. Built with a patented toggle system design, these conveyors are virtually crash-proof and offer various configurable options such as 1:2, 1:3, 1:4, or 2:4 ratios. Rated for continuous 24-hour operation, these conveyors can reach speeds of up to 350 ft/min, accommodating carrier rod lengths of up to 48 inches. With a minimum product length requirement of 4 inches, and a minimum carrier offset of 1:3 or greater at 4.75 inches, the SpanTech High Speed Switch Conveyors are designed for efficiency and reliability.
Product Specifications
Rules Of Thumb For High Speed Switches Rules Of Thumb For High S
There must be 4 inches of gap between successive products.Can be built with lexan guarding for even greater safety.Uses coated steel rods or anodized aluminum rods.High Speed Switches will not run in reverse direction.
Specifications Fast
Switch Up to 300 Parts per Minute
Specifications Low Maintenance
The High Speed Switch is rated for continuous 24 hour per day operation.
Specifications Maximum Carrier Rod Length
48 in
Specifications Maximum Speed
350 ft/min
Specifications Minimum Carrier Offset 13 Or Greater
4.75 in
Specifications Minimum Product Length Diameter
4 in
Specifications Reliable
Virtually crash proof with the patented toggle system design.
Specifications Very Configurable Options
1:2 | 1:3 | 1:4 | 2:4
