SpanTech Horizontal Ballistic Transfer Conveyors
SpanTech Horizontal Ballistic Transfer Conveyors
SKU:CON-b571ec
Efficiently transfer products with SpanTech Ballistic Conveyors. Cost-effective solutions for seamless transitions between conveyors. Ideal for maintaining product stability and integrity.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
SpanTech Horizontal Ballistic Transfer Conveyors
$2,499.99
Quantity: 1
Claim Your Seller Account
SpanTech Horizontal Ballistic Transfer Conveyors
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience seamless product transfers with SpanTech Horizontal Ballistic Transfer Conveyors. Offering cost-efficient solutions with flat transfers and various configurations to accommodate small products. From standard to low-profile designs, these conveyors ensure stability and speed up to 150 ft/min. Ideal for industries requiring efficient material handling while maintaining product integrity and minimizing transfer gaps.
Product Specifications

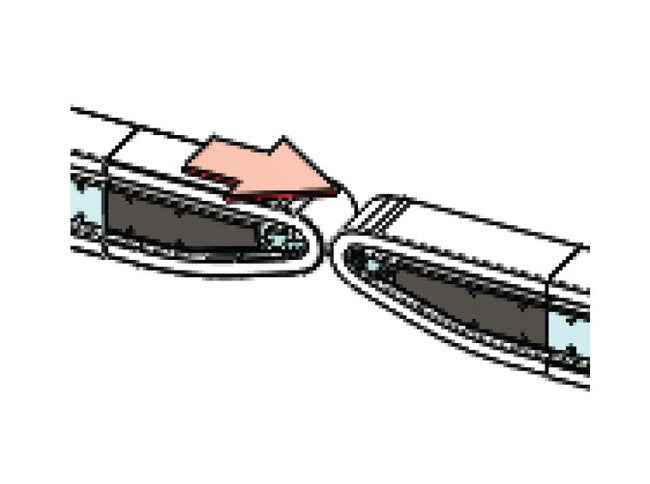

Horizontal Low Profile To Low Profile Ballistic Transfer Horizon
With both conveyors having the low profile design, this technique provides the shortest ballistic transfer gap and can therefore handle the small product of any ballistic transfer configuration. This transfer has a slightly higher cost due to the use of the low profile idler.Products as small as six inches (152.4 mm) may be transferred.When using a low profile idler, conveyor speed in general is limited to 150 ft/min (45-72 m/min).

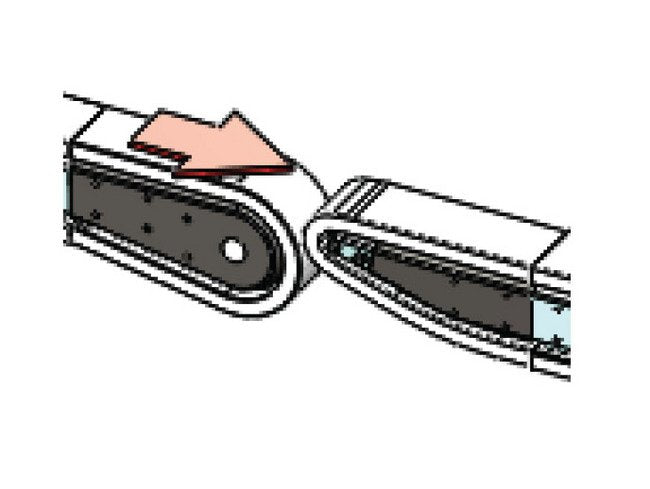

Horizontal Standard To Low Profile Ballistic Transfer Horizontal
The smaller radius of the low-profile design provides a shorter transfer gap. This transfer has a slightly higher cost due to the use of the low-profile idler.Products as small as seven inches (177.8 mm) may be possible depending on product characteristics and conveyor speed.When using a low-profile idler, conveyor speed in general is limited to 150 ft/min (45.72 m/min).

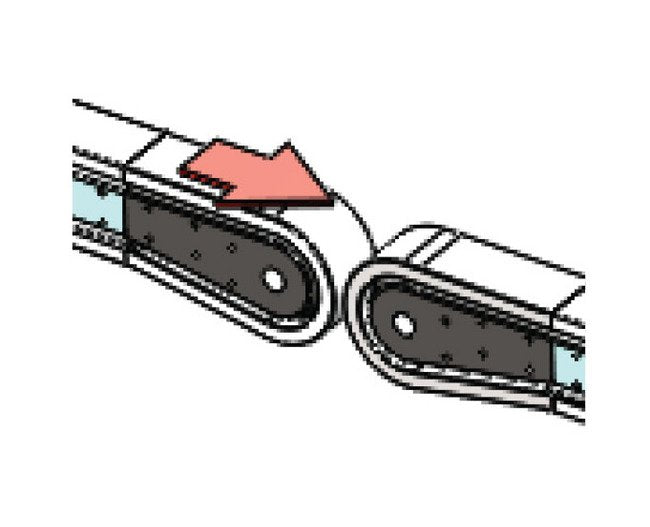

Horizontal Standard To Standard Ballistic Transfer Horizontal St
The product is transferred from a standard drive to a standard idler.Small products may be possible depending on product characteristics and conveyor speed.Product should be stable.These methods are not suitable for products small enough to dip into the gap between conveyors.
Product Requirements For All Product Requirements For All
Small products may be possible depending on product characteristics and conveyor speed.Product should be stable.These methods are not suitable for products small enough to dip into the gap between conveyors.
Specifications Conveyor Speed For Horizontal Low Profile To Low
150 ft/min | 45.72 m/min
Specifications Conveyor Speed For Horizontal Standard To Low Pro
150 ft/min | 45.72 m/min
Specifications Product Size For Horizontal Low Profile To Low Pr
6 in | 152.4 mm
Specifications Product Size For Horizontal Standard To Low Profi
7 in | 177.8 mm
