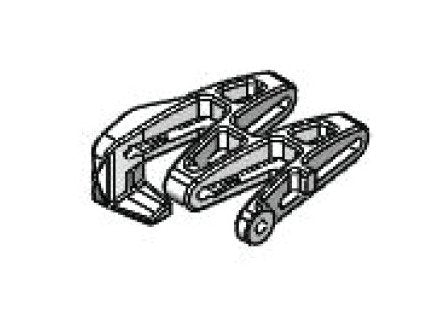

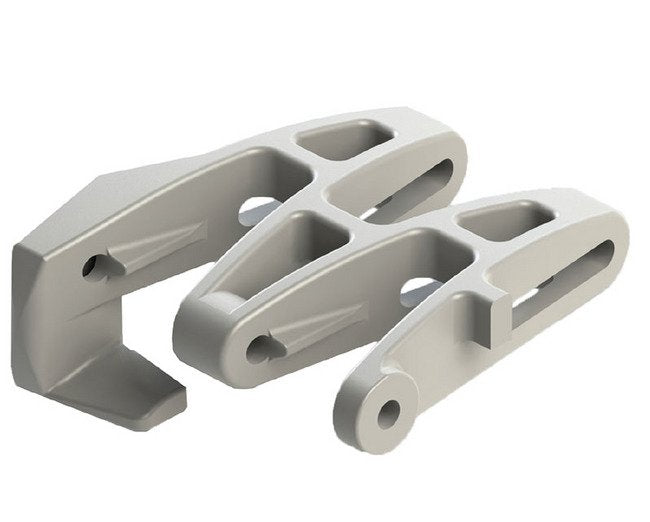

SpanTech Left Hand Plain PillowTop Chain (50mm Pitch)
SpanTech Left Hand Plain PillowTop Chain (50mm Pitch)
SKU:CHA-a52357
Enhance food industry transfers with SpanTech Left Hand Plain PillowTop Chain (50mm pitch). Lightweight, durable, and precise.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SpanTech Left Hand Plain PillowTop Chain (50mm Pitch)
$129.99
Quantity: 1
Claim Your Seller Account
SpanTech Left Hand Plain PillowTop Chain (50mm Pitch)
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SpanTech Left Hand Plain PillowTop Chain with a 50mm pitch size is designed with a curved shape to minimize chordal action, allowing for precise positioning of transfers close to the chain. Ideal for food industries handling delicate products like tortillas and cookies, this chain is lightweight yet exceptionally durable. It features a tight turning radius, making it perfect for applications where space is limited. The open design enhances cleanability, making it suitable for cooling processes. Paired with a dead plate transfer, this chain provides a cost-effective solution for small product transfers.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Color
Plain
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Acetal
Specifications Moving Direction
Left Hand
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.
What Is Chordal Action What Is Chordal Action
The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
