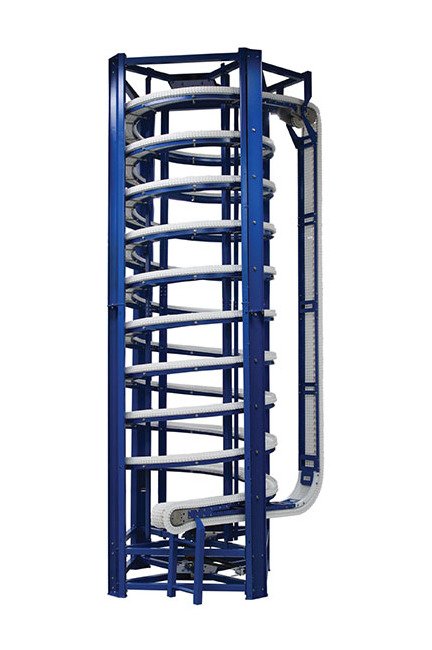

SpanTech Outrunner Spiral Belt Conveyors
SpanTech Outrunner Spiral Belt Conveyors
SKU:CON-f19700
Efficiently elevate products with SpanTech Outrunner Spiral Belt Conveyors for cooling, curing, and more. Safety-first design with configurable options.
Regular price
$15,999.99
Regular price
Sale price
$15,999.99
Unit price
per
Initiate Order
SpanTech Outrunner Spiral Belt Conveyors
$15,999.99
Quantity: 1
Claim Your Seller Account
SpanTech Outrunner Spiral Belt Conveyors
$15,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SpanTech Outrunner Spiral Belt Conveyors offer a cost-effective solution for elevating products efficiently while optimizing floor space. Featuring an extremely configurable design with variable height, diameter, and angles, these conveyors are ideal for cooling, curing, dwell times, and elevating applications. With safety in mind, the catenary-free design ensures a secure operation. The max incline angle of 25° and decline angle of 4° provide flexibility in operations. Designed for smooth acceleration and deceleration, these conveyors come with essential features like moving side guides and torque limiters to prevent overtorque conditions.
Product Specifications
Maximum Speed Limit Maximum Speed Limit On 1321 To 1794 Inch In
175 ft/min
Maximum Speed Limit Maximum Speed Limit On 1911 To 2384 Inch In
150 ft/min
Maximum Speed Limit Maximum Speed Limit On 376 To 731 Inch In 95
250 ft/min
Maximum Speed Limit Maximum Speed Limit On 849 To 1203 Inch In 2
200 ft/min
Rules Of Thumb For Outrunner Spirals Rules Of Thumb For Outrunne
All Outrunner Spirals must have a controlled stop/start sequence (smooth acceleration/deceleration) to prevent chain from crowding into the Outrunner Drive sprocket.All Outrunner Spirals must be designed with Pillow Top or SuperTight 6 mm or 30 mm moving side guides on the sides where it is driven by the Outrunner sprockets. In addition, the opposite side of the chain should also be supplied with a moving side guide unless a side by side transfer is required.Outrunner Spirals are intended to add dwell time to a product flow, but are not intended to be accumulation devices (holding product while the spiral runs).Outrunner Spirals will NOT maintain product orientation.A torque limiter between the gearmotor and the primary sprocket is required and this torque limiter must have an accompanying proximity sensor to tell the PLC or VFD to stop the spiral in case of an overtorque condition.
Specifications Applications Include
Cooling | Curing | Dwell Times | Elevating
Specifications Catenary Free
Our chain is captured throughout the entire system making the Outrunner Spiral safer than other spirals.
Specifications Extremely Configurable
A variable height, diameter, angle, chain width, infeed, and exit location.
Specifications Maximum Decline Angle
4 º
Specifications Maximum Incline Angle
25 º
Specifications Minimum Tier Pitch
4.92 in | 125 mm
Specifications Small Footprint
Save floor space by elevating with an Outrunner Spiral.
