SpanTech Pillow Top 2C Polyurethane 50mm Pitch PillowTop Link Chain
SpanTech Pillow Top 2C Polyurethane 50mm Pitch PillowTop Link Chain
SKU:CHA-c5e7b5
Enhance your food industry operations with the SpanTech PillowTop Link Chain for precision and efficiency.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SpanTech Pillow Top 2C Polyurethane 50mm Pitch PillowTop Link Chain
$299.99
Quantity: 1
Claim Your Seller Account
SpanTech Pillow Top 2C Polyurethane 50mm Pitch PillowTop Link Chain
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

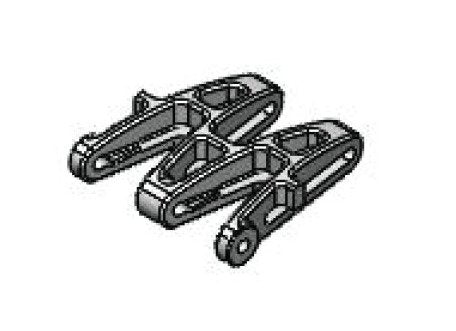

The SpanTech Pillow Top 2C Polyurethane PillowTop Link Chain with a 50mm pitch size offers a curved design that minimizes chordal action, enabling precise transfers close to the chain. Ideal for food industries handling delicate items like tortillas and cookies, this chain, when used with dead plate transfer, provides cost-effective small product conveyance. With durable lightweight construction, a tight turning radius, and enhanced cleanability features, this chain ensures efficient and sanitary operations.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)Polyurethane High Friction
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Polyurethane
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.
What Is Chordal Action What Is Chordal Action
The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
