SpanTech Santoprene PillowTop Chain
SpanTech Santoprene PillowTop Chain
SKU:CHA-676c97
Discover the lightweight and durable SpanTech Santoprene PillowTop Chain for precision handling of delicate food products.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
SpanTech Santoprene PillowTop Chain
$199.99
Quantity: 1
Claim Your Seller Account
SpanTech Santoprene PillowTop Chain
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

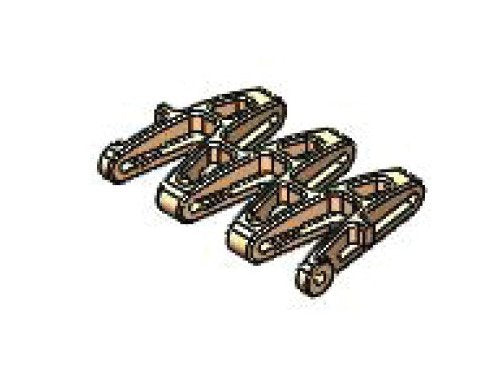

The SpanTech Santoprene PillowTop Chain in a 50mm pitch size offers a curved design to minimize chordal action, ideal for close transfers in food industries. Lightweight yet durable, this chain is perfect for delicate products like tortillas and cookies. With a tight turning radius and open design for easy cleaning, it replaces 50mm SuperTight chains seamlessly.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)Santoprene High Friction
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Santoprene
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.
What Is Chordal Action What Is Chordal Action
The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
