SpanTech Topper Lift Belt Conveyors
SpanTech Topper Lift Belt Conveyors
SKU:CON-2b38c2
Boost efficiency with SpanTech Topper Lift Conveyors, elevating products up to 60º with stability. No PLC needed, configurable width for varied needs.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
SpanTech Topper Lift Belt Conveyors
$18,999.00
Quantity: 1
Claim Your Seller Account
SpanTech Topper Lift Belt Conveyors
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance material handling efficiency with the SpanTech Topper Lift Belt Conveyors. Capable of elevating rigid or flexible products up to 60º with impressive elevation and configurable width. No PLC needed, just reliable performance for angled transport needs. The Topper Lift system ensures product stability with precise chain width and vertical clearance, meeting institutional procurement requirements for seamless operation.
Product Specifications
Rules Of Thumb For Topper Lifts Rules Of Thumb For Topper Lifts

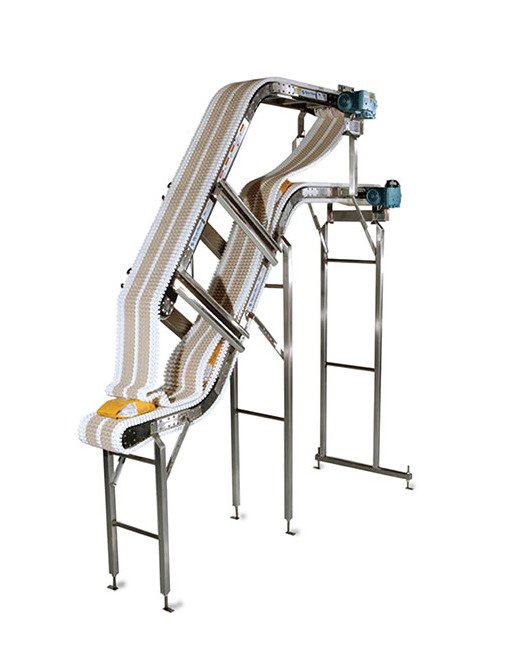

The Topper Lift conveyor system sandwiches a product between two conveyor chains, in order to apply pressure across the top of the product and prevent it from tipping over. This allows the product to be transported at excessive angles that would not be possible on a standard incline conveyor.There must be (3) product lengths between adjacent products.Chain width must be at least 4.75" wider than the product in order to guarantee full high friction module coverage.There must be at least 12" of vertical clearance above the top of the product.Multiple lanes of product are not recommended.The top conveyor must be driven with a VFD in order to set the right speed for the application (in some instances it could run slightly faster or slower than the bottom conveyor.)
Specifications Chain Width
4.75 in
Specifications Configurable Width
Using our standard chain widths, the Topper Lift's width can be configured to fit your needs and footprint.
Specifications Impressive Elevation
Most cost effective for elevating up to 60º.
Specifications Maximum Recommended Angle
60 º
Specifications Maximum Recommended Speed
200 ft/min
Specifications No Programmable Logic Controller Plc No Problem
No programmable logic controller (PLC) is needed to run the Topper Lift.
Specifications Product Handling
The Topper Lift is capable of handling rigid or flexible products such as bagged, boxed, or frozen items.
Specifications Product Pitch
4 x Product Length
Specifications Vertical Clearance Above The Top
12 in
