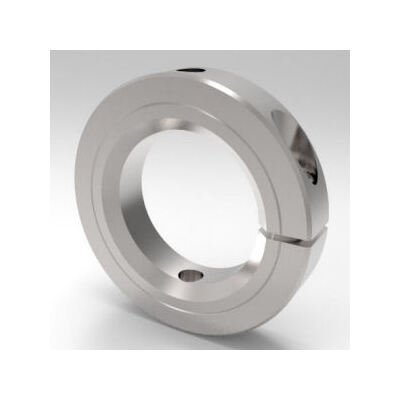

SPARC™ Stainless Steel Prototype Collar

Name: SPARC™ Stainless Steel Prototype Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-5497f7
Price: 29.99 USD
Availability: OutOfStock

SKU:ROU-5497f7

Innovative stainless steel prototype collar for rapid specialized shaft collar prototyping. Customizable bore sizes and versatile design for efficient and precise results.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience the innovation of the SPARC™ System One-Piece Split Master Collar, designed for rapid prototyping of specialized shaft collars. Constructed from high-grade stainless steel, this master collar offers precise compatibility with 3-D printed inserts, allowing for customizable bore sizes. The SPARC™ system empowers users to efficiently create unique prototypes with features like holes, bosses, and more. Available in three sizes to fit shafts ranging from 1/8" to 2-3/4" O.D., this versatile collar enhances the speed and flexibility of your prototyping process while maintaining superior quality.

Product Specifications

Dimensional Attributes Bore Size

3 in

Dimensional Attributes Maximum Insert Id

2.750 in

Dimensional Attributes Outside Diameter

4.000 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.69 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

3-DM1S300

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Upc Code

662786037351

SPARC™ Stainless Steel Prototype Collar
