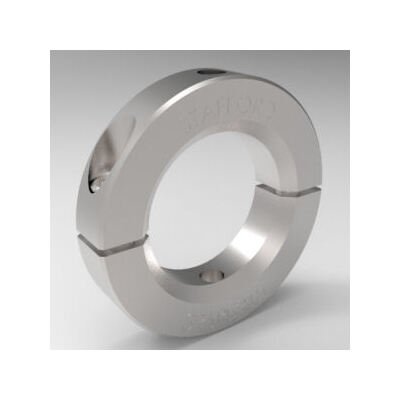

The SPARC™ System Two-Piece Split Master Collar is a cutting-edge solution that empowers users to easily create working prototypes of special-purposed shaft collars with unprecedented speed and flexibility. Crafted from high-quality stainless steel alloy, this master collar accepts 3-D printed inserts, allowing for infinite bore customization. Users can swiftly produce custom inserts using their own 3-D printer or third-party services, significantly reducing turnaround time versus traditional machining methods. With three available sizes to accommodate shafts ranging from 1/8" to 2-3/4" O.D., this versatile collar system opens up a world of design possibilities. Welcome to a new era of prototyping with the SPARC™ System.
Product Specifications
Dimensional Attributes Bore Size
3 in
Dimensional Attributes Maximum Insert Id
2.750 in
Dimensional Attributes Outside Diameter
4.000 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Width
0.500 in
Specifications Alloy
303
Specifications Approximate Weight
0.65 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
3-DM2S300
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786037443
