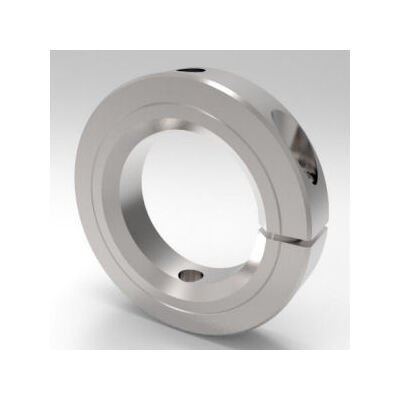

SPARCâ¢ Master Collar Prototype System

Name: SPARCâ¢ Master Collar Prototype System
Brand: Stafford Manufacturing Corp.
SKU: ROU-58c741
Price: 49.99 USD
Availability: OutOfStock

SKU:ROU-58c741

Revolutionary SPARCâ„¢ Master Collar allows rapid prototyping of special-purposed shaft collars using 3-D printed inserts for unlimited bore options.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SPARCâ¢ Master Collar Prototype System revolutionizes the creation of special-purposed shaft collars with its cutting-edge design. This system accepts 3-D printed inserts, allowing for unlimited bore possibilities. Available in steel, stainless steel, and aluminum, the precision machined shaft collar masters come in three sizes to accommodate shafts from 1/8" to 2-3/4" O.D. Users can easily create working prototypes in hours, thanks to the innovative design that enables secure mating of inserts with the master collar. Whether you need holes, bosses, slots, tabs, hubs, pulleys, or other features, the SPARCâ„¢ system offers a versatile solution for rapid prototyping. Join the community today and unleash your creativity!

Product Specifications

Dimensional Attributes Bore Size

1-1/2 in

Dimensional Attributes Maximum Insert Id

1.250 in

Dimensional Attributes Outside Diameter

2.500 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.39 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

3-DM1S108

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Upc Code

662786037337

SPARCâ¢ Master Collar Prototype System
