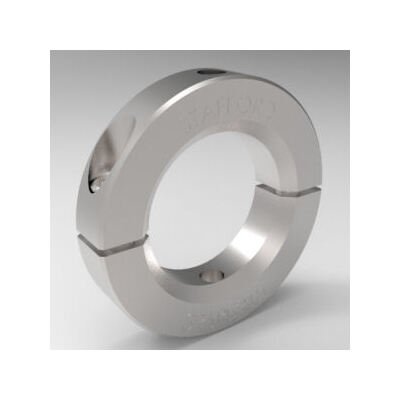

SPARCâ¢ System 2-Piece Split Master Collar

Name: SPARCâ¢ System 2-Piece Split Master Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-79a8f8
Price: 42.99 USD
Availability: OutOfStock

SKU:ROU-79a8f8

Innovative SPARCâ¢ System for rapid creation of custom shaft collars with 3-D printed inserts, available in steel, stainless steel, and aluminum.

$42.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SPARCâ¢ System 2-Piece Split Master Collar is a versatile solution for creating custom shaft collars and components rapidly. This innovative system accepts 3-D printed inserts for limitless bore options. Available in steel, stainless steel, and aluminum, the precision machined master collars come in three sizes to fit shafts ranging from 1/8â to 2-3/4â O.D. Users can easily craft prototypes with user-defined or pre-designed inserts, making production efficient and cost-effective.

Product Specifications

Dimensional Attributes Bore Size

2 in

Dimensional Attributes Maximum Insert Id

1.750 in

Dimensional Attributes Outside Diameter

3.250 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.6 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

3-DM2S200

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Upc Code

662786037436

SPARCâ¢ System 2-Piece Split Master Collar
