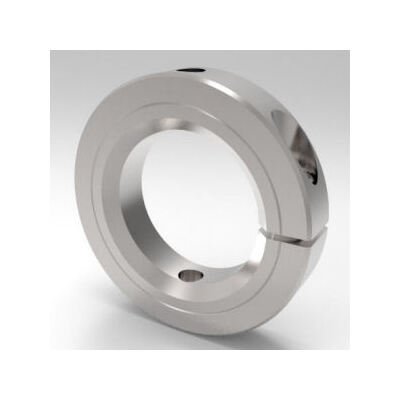

SPARCâ¢ System Prototype Master Collar

Name: SPARCâ¢ System Prototype Master Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-3897c9
Price: 39.99 USD
Availability: OutOfStock

SKU:ROU-3897c9

Innovative SPARCâ„¢ System for rapid prototype development with custom shaft collars. Accepts 3-D printed inserts for versatile bore options.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Empower innovation and rapid prototyping with the SPARCâ„¢ System Prototype Master Collar. This one-piece split collar system allows for the creation of custom shaft collars and components in hours. Featuring master collars in steel, stainless steel, or aluminum, the SPARCâ„¢ system accepts 3-D printed inserts for limitless bore options. Ideal for experimental designs, this system streamlines the prototype development process by offering precision-machined masters in three sizes, capable of fitting shafts from 1/8â to 2-3/4â O.D.

Product Specifications

Dimensional Attributes Bore Size

3 in

Dimensional Attributes Maximum Insert Id

2.750 in

Dimensional Attributes Outside Diameter

4.000 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Width

0.500 in

Specifications Alloy

2024-T351

Specifications Approximate Weight

0.22 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Aluminum

Specifications Part Number

3-DM1A300

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Upc Code

662786037382

SPARCâ¢ System Prototype Master Collar
