SPARCâ¢ System Two-Piece Split Master Collar - Prototype & Repair Solution

Name: SPARCâ¢ System Two-Piece Split Master Collar - Prototype & Repair Solution
Brand: Stafford Manufacturing Corp.
SKU: ROU-57ddfd
Price: 39.99 USD
Availability: OutOfStock

SKU:ROU-57ddfd

Revolutionize prototyping with SPARCâ¢ System Split Master Collar - accepts 3-D printed inserts for custom bore options.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

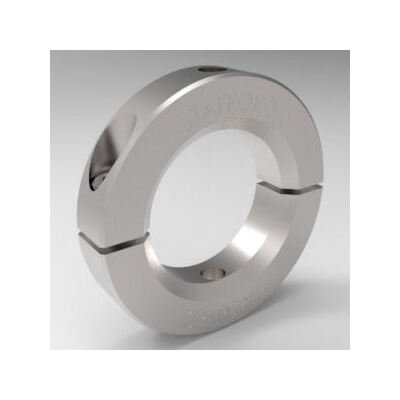

The SPARCâ¢ System Two-Piece Split Master Collar is a revolutionary prototype and repair solution for creating custom shaft collars and components in record time. With the ability to accept 3-D printed inserts, this system offers unlimited bore possibilities. Available in steel, stainless steel, and aluminum, these precision-machined masters come in three sizes to fit shafts ranging from 1/8â to 2-3/4â O.D. Partnered with user-specific or pre-designed inserts, the SPARCâ¢ System empowers users to rapidly develop prototypes with features like holes, bosses, slots, and more. Join the community today and unleash your innovation with SPARCâ¢!

Product Specifications

Dimensional Attributes Bore Size

3 in

Dimensional Attributes Maximum Insert Id

2.750 in

Dimensional Attributes Outside Diameter

4.000 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Width

0.500 in

Specifications Alloy

2024-T351

Specifications Approximate Weight

0.23 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Aluminum

Specifications Part Number

3-DM2A300

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Upc Code

662786037474

SPARCâ¢ System Two-Piece Split Master Collar - Prototype & Repair Solution
