SPCV Series 1
SPCV Series 1
SKU:SPC-70d3fc
High-performance 1
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SPCV Series 1
$89.99
Quantity: 1
Claim Your Seller Account
SPCV Series 1
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

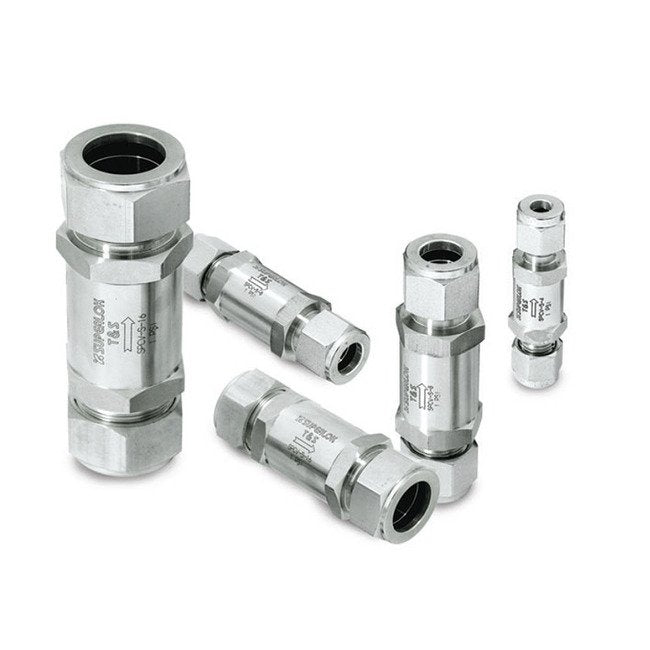

The SPCV Series 1 Inch SUPERLOK® End Connections Check Valve is a premium solution for both consumer and institutional buyers. With a pressure rating of 0 to 3000 psig and a temperature rating of up to 375°F, this check valve ensures reliable performance in diverse environments. Constructed with 316 stainless steel and various seal materials including EPDM and FKM, this valve guarantees durability and longevity. Its fixed cracking pressure and variety of end connections make it versatile and efficient for a wide range of applications. Each valve undergoes rigorous testing at the factory for cracking pressure and reseal performance, ensuring quality and consistency.
Product Specifications
Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

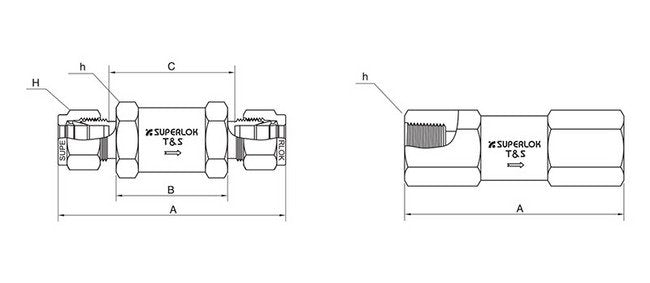

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
111.22 mm
Technical Specs Dimension B
58.4 mm
Technical Specs Dimension C
48.9 mm
Technical Specs Dimension H
38.10 mm
Technical Specs End Connections
1 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
4.50
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
