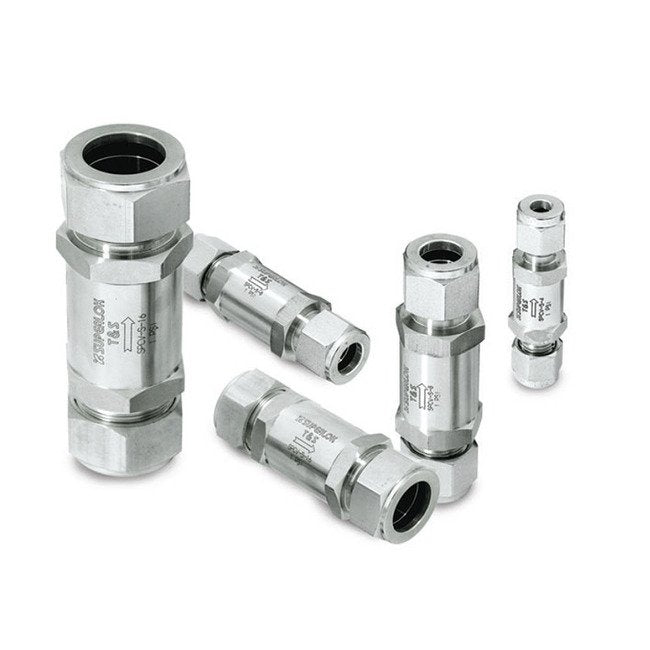

SPCV Series 1/2" FNPT Check Valve

SPCV Series 1/2" FNPT Check Valve

SPC-6da3e9

Reliable SPCV Series 1/2" FNPT Check Valve for industrial use. Pressure rating up to 3000 psig & temperature rating up to 375°F.

$45.99
$45.99
Sale

Initiate Order

SPCV Series 1/2" FNPT Check Valve

SPCV Series 1/2" FNPT Check Valve

$45.99

Quantity: 1

Claim Your Seller Account

SPCV Series 1/2" FNPT Check Valve

SPCV Series 1/2" FNPT Check Valve

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SPCV Series 1/2" FNPT Check Valve is designed for precision and reliability in industrial applications. With a pressure rating of 0 to 3000 psig and a temperature rating of up to 375°F, this valve ensures optimal performance under varying conditions. Manufactured with high-quality materials such as 316 stainless steel and brass, it offers exceptional durability. The valve features fixed cracking pressure and undergoes rigorous testing for superior quality assurance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

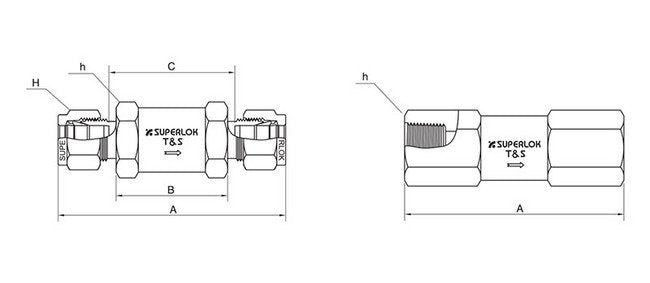

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
90.60 mm
Technical Specs Dimension H
27.00 mm
Technical Specs End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
2.6
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
