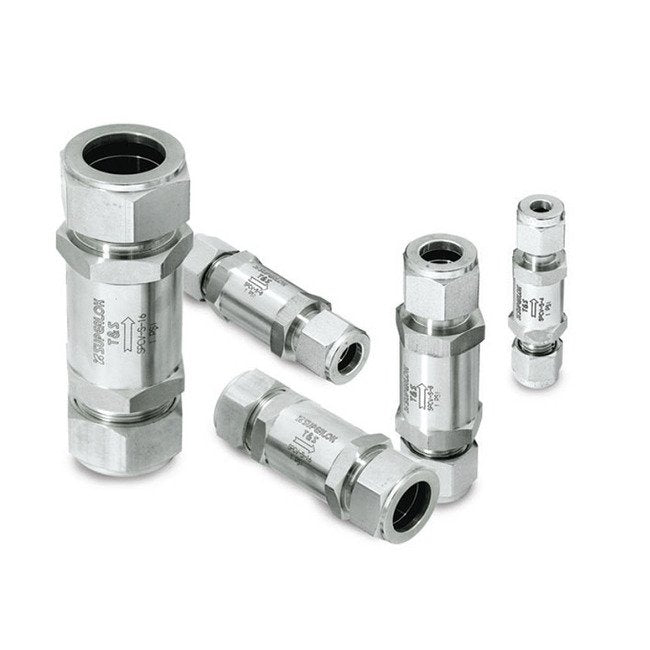

SPCV Series 1/2" SUPERLOK Check Valve
SPCV Series 1/2" SUPERLOK Check Valve
SKU:SPC-5c682e
High-performance 1/2" SUPERLOK Check Valve for precise fluid control. Tested for quality and reliability.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SPCV Series 1/2" SUPERLOK Check Valve
$59.99
Quantity: 1
Claim Your Seller Account
SPCV Series 1/2" SUPERLOK Check Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPCV Series 1/2" SUPERLOK Check Valve is designed for precision and reliability in fluid control systems. With a pressure rating of 0 to 3000 psig and a temperature rating of up to 375°F, this check valve ensures optimal performance under varying conditions. The valve features a variety of end connections and is constructed with high-quality 316 stainless steel and brass materials. Each valve undergoes rigorous testing for cracking pressure and reseal performance, guaranteeing superior quality and durability.
Product Specifications
Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

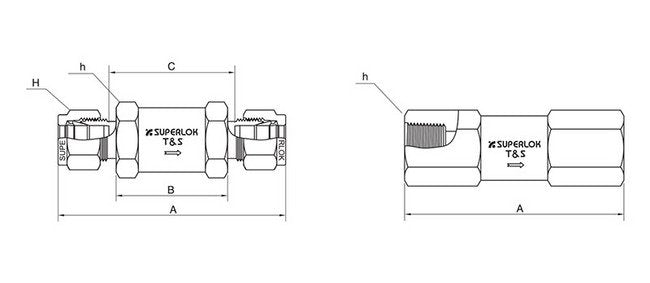

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
86.58 mm
Technical Specs Dimension B
42.9 mm
Technical Specs Dimension C
40.8 mm
Technical Specs Dimension H
22.22 mm
Technical Specs End Connections
1/2 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
1.7
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
