SPCV Series 1/4 Inch SUPERLOK Check Valve
SPCV Series 1/4 Inch SUPERLOK Check Valve
SKU:SPC-1e001d
High-performance 1/4 inch check valve for industrial applications. Pressure rating up to 3000 psig and temperature rating of 375°F.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SPCV Series 1/4 Inch SUPERLOK Check Valve
$49.99
Quantity: 1
Claim Your Seller Account
SPCV Series 1/4 Inch SUPERLOK Check Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPCV Series 1/4 Inch SUPERLOK End Connections Check Valve is designed for reliable performance in industrial settings. With a pressure rating of 0 to 3000 psig and a temperature rating of up to 375°F, this check valve ensures smooth flow control. Made with 316 Stainless Steel and available seal materials like EPDM and FKM, it guarantees durability and longevity. Each valve undergoes rigorous testing at the factory to ensure consistent quality and performance.
Product Specifications
Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

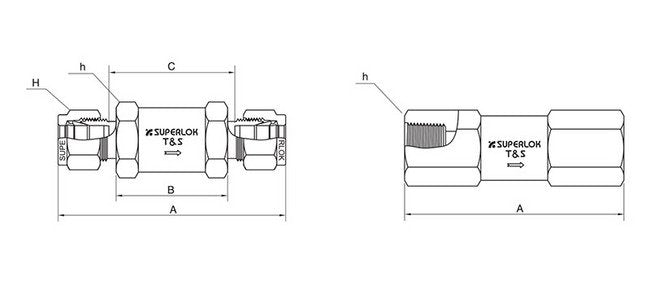

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
62.16 mm
Technical Specs Dimension B
26.6 mm
Technical Specs Dimension C
31.4 mm
Technical Specs Dimension H
14.28 mm
Technical Specs End Connections
1/4 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
0.47
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
