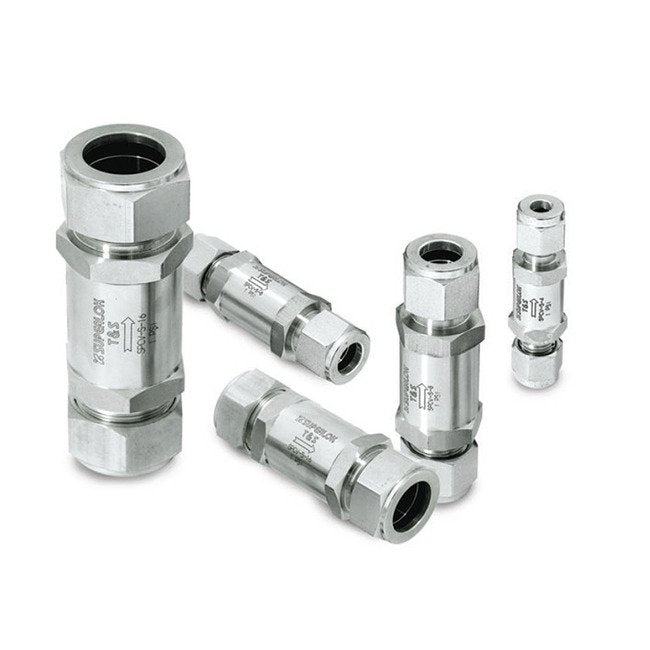

SPCV Series 1/8 Female NPT Check Valve
SPCV Series 1/8 Female NPT Check Valve
SKU:SPC-5faf02
Reliable SPCV Series 1/8 Female NPT Check Valve for precise flow control in various applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
SPCV Series 1/8 Female NPT Check Valve
$45.99
Quantity: 1
Claim Your Seller Account
SPCV Series 1/8 Female NPT Check Valve
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPCV Series 1/8 Female NPT Check Valve is a high-quality, durable valve designed for precision control and reliable performance in a variety of applications. With a pressure rating of up to 3000 psig and a temperature rating of 375°F, this valve ensures optimal flow regulation and safety. The valve features a fixed cracking pressure, various end connection options, and undergoes rigorous testing at the factory for consistent performance. Crafted from 316 stainless steel and brass, with seal materials including EPDM and FKM, this valve meets stringent quality standards and is ideal for both consumer and institutional buyers.
Product Specifications
Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

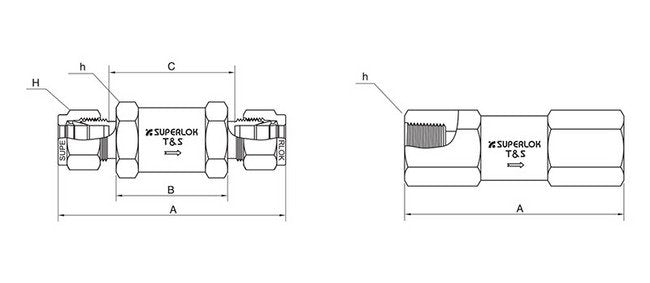

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
50.0 mm
Technical Specs Dimension H
15.88 mm
Technical Specs End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
0.47
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
