SPCV Series 1" FNPT Check Valve
SPCV Series 1" FNPT Check Valve
SKU:SPC-972537
Reliable 1" FNPT Check Valve for precise fluid control in institutional applications. Pressure rating up to 3000 psig, temp rating 375°F.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SPCV Series 1" FNPT Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
SPCV Series 1" FNPT Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

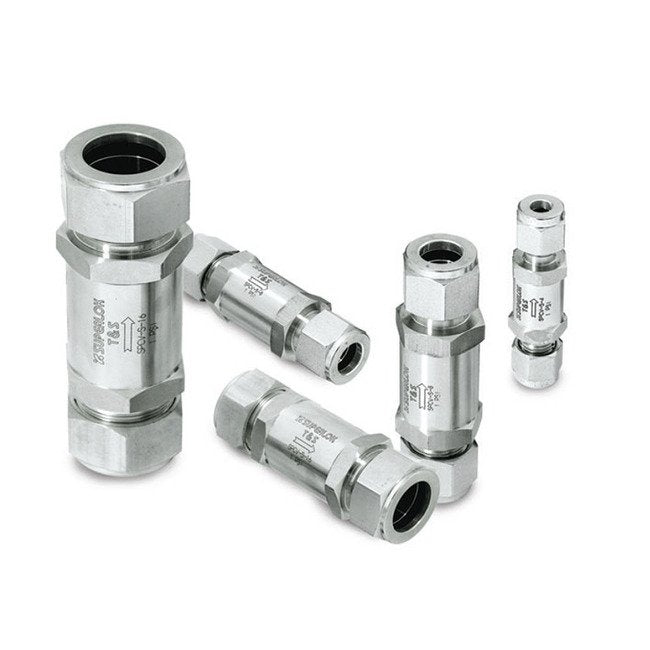

The SPCV Series 1 Inch Check Valve is a robust and reliable solution for fluid control, featuring a pressure rating of 0 to 3000 psig and a temperature rating of up to 375°F. With various seal material options and durable body materials like 316 Stainless Steel and Brass, this valve ensures long-lasting performance. Tested for cracking pressure at the factory, it offers secure sealing and precise flow control, making it ideal for institutional and government applications.
Product Specifications
Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

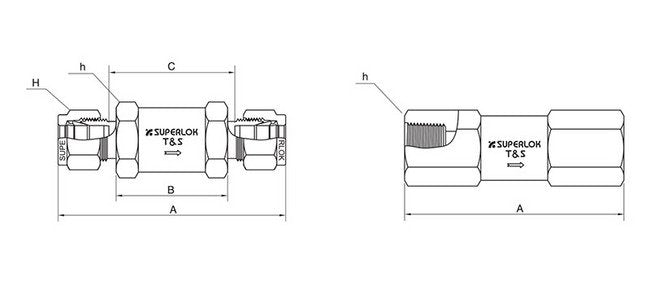

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
114.30 mm
Technical Specs Dimension H
41.27 mm
Technical Specs End Connections
1 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
4.50
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
