SPCV Series 3/4 FNPT Check Valve
SPCV Series 3/4 FNPT Check Valve
SKU:SPC-4715f9
High-quality SPCV Series 3/4 FNPT Check Valve for precise industrial flow control. Durable, reliable, and versatile for various applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
SPCV Series 3/4 FNPT Check Valve
$79.99
Quantity: 1
Claim Your Seller Account
SPCV Series 3/4 FNPT Check Valve
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

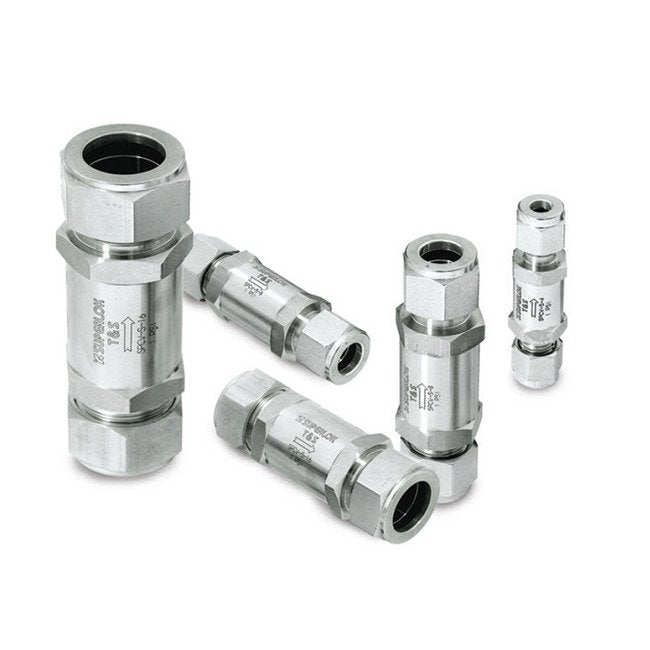

The SPCV Series 3/4 Inch Female National Pipe Thread Check Valve is a robust and reliable component designed for precise flow control in industrial settings. With a pressure rating of 0 to 3000 psig and a temperature rating up to 375°F, this valve ensures efficient performance under varying conditions. The valve features a fixed cracking pressure and a range of end connections for versatile installation. Manufactured with high-quality materials like 316 stainless steel and brass, it undergoes rigorous testing to guarantee optimal cracking pressure and reseal performance. Experience superior durability and functionality with this check valve.
Product Specifications
Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

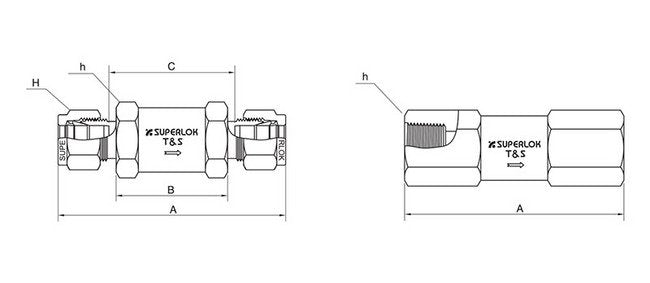

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
99.78 mm
Technical Specs Dimension H
31.80 mm
Technical Specs End Connections
3/4 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
4.50
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
