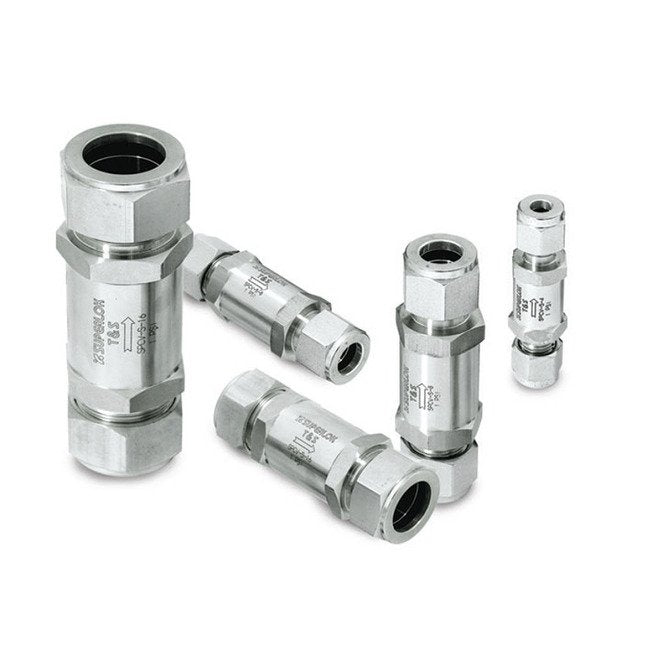

SPCV Series Check Valve 1/4 FNPT End Connections
SPCV Series Check Valve 1/4 FNPT End Connections
SKU:SPC-bb68c9
High-performance 1/4 Inch FNPT Check Valve for precise flow control in industrial settings.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SPCV Series Check Valve 1/4 FNPT End Connections
$59.99
Quantity: 1
Claim Your Seller Account
SPCV Series Check Valve 1/4 FNPT End Connections
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPCV Series 1/4 Inch Female National Pipe Thread (FNPT) Check Valve is a reliable solution for controlling flow in industrial applications. With a pressure rating of 0 to 3000 psig and a temperature rating of 375°F, this valve ensures efficient operation under varying conditions. Constructed with high-quality materials such as 316 Stainless Steel and Brass, and featuring Ethylene Propylene Diene Monomer (EPDM) seals, this valve guarantees durability and leak-free performance. Tested for cracking pressure and reseal performance, this valve meets stringent quality standards, making it ideal for both consumer and institutional buyers.
Product Specifications
Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

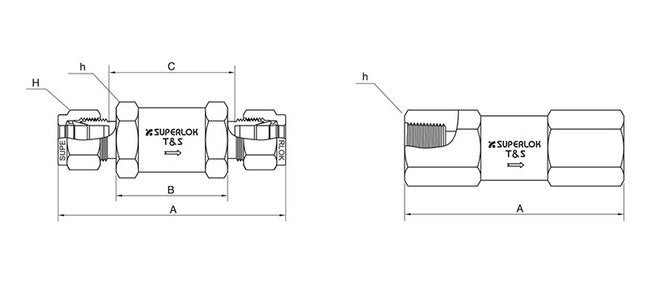

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
57.10 mm
Technical Specs Dimension H
19.05 mm
Technical Specs End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
0.47
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
