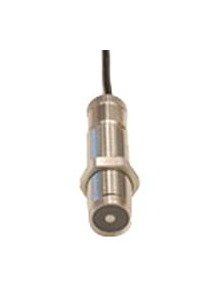

The Spectec 11/16 Digispec Magnetic Speed Sensor is a top-of-the-line amplified variable reluctance speed sensor designed to provide a digital frequency output proportional to speed. It features an internal amplifier for consistent pulse shaping, robust signal-to-noise ratio, and can operate at lower RPMs with a greater air gap between sensor and actuator. With options for internal temperature probes and customizable configurations, this sensor is versatile and reliable for a wide range of applications, meeting stringent industry standards for performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
For hazardous location Class 1 Division 1 please refer to IS90 & IS91, or for Class 1 Division 2 please refer to N90 & N91.For hazardous location Class 1 Division 1 please refer to IS90 & IS91, or for Class 1 Division 2 please refer to N90 & N91.
Options Options
Custom configurations, thread sizes, outputs, special materials of construction, temperature probes (NTC10, RTD100, or others) are available. Please contact sales for more information.
Technical Specs Brands
Spectec
Technical Specs Connectorspins
3 Pin | 4 Pin | 6 Pin
Technical Specs Construction
300 Series Stainless Steel Housing Solid Epoxy Encapsulation
Technical Specs Direct Supply Current At 30 Volt V Open Circuit
⤠20 mA
Technical Specs European Conformity Ce Compliance
European Standards (EN)50082-2 | European Standards (EN)55011
Technical Specs Gear Pitch For Fp130 Fps130 Ep106 Ep125 And Eps1
⤠24 DP (MODULE 1.06)
Technical Specs Lead Wire And Assignments Bare
Shield
Technical Specs Lead Wire And Assignments Black
Common (-)
Technical Specs Lead Wire And Assignments Material 2te
Polyvinyl Chloride (PVC)
Technical Specs Lead Wire And Assignments Material 3te
Tetrafluoroethylene (TFE)
Technical Specs Lead Wire And Assignments Red
Supply (+)
Technical Specs Lead Wire And Assignments Size 2te
20 to 24 AWG
Technical Specs Lead Wire And Assignments Size 3te
20 to 24 AWG
Technical Specs Lead Wire And Assignments Whitegreen
Signal Out
Technical Specs Note For Lead Wire And Assignments Size 2te
Maximum 105 ºC
Technical Specs Note For Operating Frequency
30 kHz at increased signal level, varies with target size, distance and pickup sensitivity. (Options: ⥠100 kHz)
Technical Specs Note For Pole Type
Flush (FP), Sealed Flush (FPS), Extended (EP), Sealed Extended (EPS)
Technical Specs Operating Frequency
3 to 10 kHz
Technical Specs Peak To Peak Input Sensitivity
5 mV | 12 mV | 30 mV
Technical Specs Pole Type
EP106 | EP125 | EPS130 | FP130 | FPS130
Technical Specs Risefall Time
0.04 µs | 0.16 µs
Technical Specs Standard Magnetization
⥠900 Gauss
Technical Specs Temperature Range 2te
-40 to 257 ºF | -40 to 125 ºC
Technical Specs Temperature Range 3te
-49 to 284 ºF | -45 to 140 ºC
Technical Specs Low Magnetization
250 Gauss
