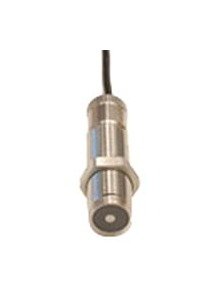

The SPECTEC 5/8 KL and KS Type Magnetic Variable Reluctance Speed Sensor is a part of the high-performance specialty sensor line. These rugged, versatile sensors feature a wide range of DC coil resistances, inductance values, and peak-to-peak output voltages to meet diverse application needs. With options like an integral temperature sensor and various pole types, they offer flexibility and reliability for industrial usage. Constructed with 303/304 Stainless Steel and solid epoxy encapsulation, these sensors are durable and precise, making them ideal for government and institutional procurement requirements.
Product Specifications
Additional Information Additional Information
High temperature and cryogenic versions can be used in temperatures from -268°C to +232°C (-450°F to +450°F). Extreme temperature versions can be special ordered for temperatures up to 450°C (850°F).Intrinsically Safe and Explosion/Flame Proof versions are also available for Hazardous Locations. The output of this sensor can be converted to a digital signal with a Signal Amplifier. This sensor type can typically be replaced by an Amplified Variable Reluctance Speed Sensor or Hall Effect.
Note Note
The standard pole for each model is defined above. If an alternate pole is needed, it should be added as a suffix to the part number, e.g. 0014-xx-ep93 designating an extended pole of ø.093. The standard pole (defined above) will not have a suffix.The magnetization level for special or low magnetic drag sensors, is called out as a suffix to the part number, e.g. 0014-xx-300g designating a gauss level of 300. (after alternate pole) (standard magnetic level (up to 1200g) will not have a suffix.)
Options Options
For different length, material of construction, configuration, special pole-piece types, thread size, hermetically sealed, precision custom magnetization, connector and/or cable termination, please contact factory.For CL 1, Div I & II hazardous location, Intrinsically Safe, and Non Incendive versions; please refer to IS40 and N40.
Technical Specs Brands
Spectec
Technical Specs Connector
MS
Technical Specs Construction
303/304 Stainless Steel (S.S.), Solid Epoxy Encapsulation.
Technical Specs Direct Current Dc Coil Resistance Type 1
80 Ω
Technical Specs Direct Current Dc Coil Resistance Type 2
150 to 210 Ω
Technical Specs Direct Current Dc Coil Resistance Type 4
1100 Ω
Technical Specs European Conformity Ce Compliance
European Standards (EN)50082-2 | European Standards (EN)55011
Technical Specs Gear Pitch For Ep106 Cp45 Ep125 And Fp
⤠24 DP (Module 1.06)
Technical Specs Gear Pitch For Ep188
⤠12 DP (MODULE 2.11)
Technical Specs Gear Pitch For Ep250
⤠5 DP (MODULE 5.1)
Technical Specs Gear Pitch For Ep93
⤠26 DP (MODULE 0.98)
Technical Specs Gear Pitch For Ep And Cp10
⤠36 DP (Module 0.7)
Technical Specs Inductance Type 1
25 mH
Technical Specs Inductance Type 2
85 mH
Technical Specs Inductance Type 4
450 mH
Technical Specs Lead Wire Type X
L 12 in | LS 120 in | LS 168 in | LS 276 in | LS 72 in
Technical Specs Note For Output Voltage
When tested at 1000 IPS against 20 pitch, 30 tooth gear at 0.005" gap, 100k Ohm load. Inductance and output voltage notations are maximum values.
Technical Specs Note For Pole Piece Selections

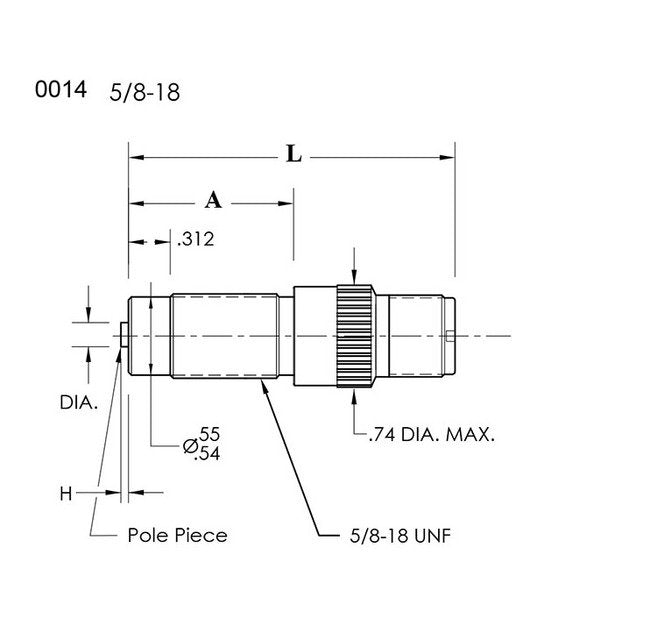

0014 is shown with the extended pole(EP). 0018 is shown in the flush pole(FP) version. To optomize performance please note gear pitch/pole piece recommendations:
Technical Specs Note For Pole Type
Flush, Extended & Chisel Points are available. (Chisel must be oriented parallel with gear tooth.)
Technical Specs Overall Length With Connector
2.07 in | 2.5 in | 2.75 in | 3.6 in | 53 mm | 64 mm | 70 mm | 91 mm
Technical Specs Peak To Peak Output Voltage Type 1
35 V
Technical Specs Peak To Peak Output Voltage Type 2
45 V
Technical Specs Peak To Peak Output Voltage Type 4
170 V
Technical Specs Pole Type
CP10 | CP45 | EP | EP106 | EP125 | EP188 | EP250 | EP93 | FP
Technical Specs Temperature Range 2t
-73 to 120 ºC | -100 to 250 ºF
Technical Specs Temperature Range 3t
-101 to 165 ºC | -150 to 330 ºF
Technical Specs Temperature Range 5ht
-268 to 232 ºC | -450 to 450 ºF
Technical Specs Thread Length
1.43 in | 2.13 in | 2.5 in | 36 mm | 54 mm | 64 mm
Technical Specs Thread Size
5/8 - 18
Technical Specs Low Magnesium Magnetization
250 Gauss
Technical Specs Standard Magnetization
100 Gauss
