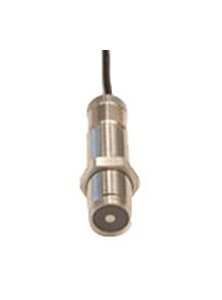

The Spectec M10 Lead Wire Magnetic Variable Reluctance Speed Sensor is a top-of-the-line product designed for precision sensing in a wide range of applications. With coil resistance options ranging from 100Ω to 1100Ω, inductance reaching up to 120 mH, and peak-to-peak output voltage capabilities up to 85 V, this sensor offers exceptional performance and flexibility. Its temperature range spans from -73°C to 232°C, making it versatile for various environments. Constructed with 300 series stainless steel and solid encapsulation, this sensor ensures durability and reliability. For customization options and specialized requirements, contact the factory directly.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
High temperature and cryogenic versions can be used in temperatures from -268°C to +232°C (-450°F to +450°F). Extreme temperature versions can be special ordered for temperatures up to 450°C (850°F). Intrinsically Safe and Explosion/Flame Proof versions are also available for Hazardous Locations. The output of this sensor can be converted to a digital signal with a Signal Amplifier. This sensor type can typically be replaced by an Amplified Variable Reluctance Speed Sensor or Hall Effect.
Options Options
For different length, material of construction, configuration, special pole-piece types, thread size, hermetically sealed, precision custom magnetization, connector and/or cable termination, please contact factory. For intrinsically safe versions refer to bulletin: IS40 and IS41
Technical Specs Brands
Spectec
Technical Specs Coil Resistance Type 1
100 Ω
Technical Specs Coil Resistance Type 2
230 Ω
Technical Specs Coil Resistance Type 3
650 Ω
Technical Specs Coil Resistance Type 4
1100 Ω
Technical Specs Coil Resistance Type 8
270 Ω | 330 Ω
Technical Specs Connector
1 Pin | 2 Pin | 4 Pin
Technical Specs Construction
300 Series Stainless SteelSolid EncapsulationAll Standard Connectors Have Gold Plated Pins
Technical Specs European Conformity Ce Compliance
European Standards (EN)50022-2 | European Standards (EN)55011
Technical Specs Gear Pitch For Ep40 Ep62 And Cp10
⤠36 DP (Module 0.7)
Technical Specs Gear Pitch For Ep93 And Fps
⤠26 DP (Module 0.98)
Technical Specs Gear Pitch For Fp130
⤠24 DP (Module 1.06)
Technical Specs Inductance Type 1
10 mH
Technical Specs Inductance Type 2
40 mH
Technical Specs Inductance Type 3
120 mH
Technical Specs Inductance Type 4
Call Factory
Technical Specs Inductance Type 8
40 mH

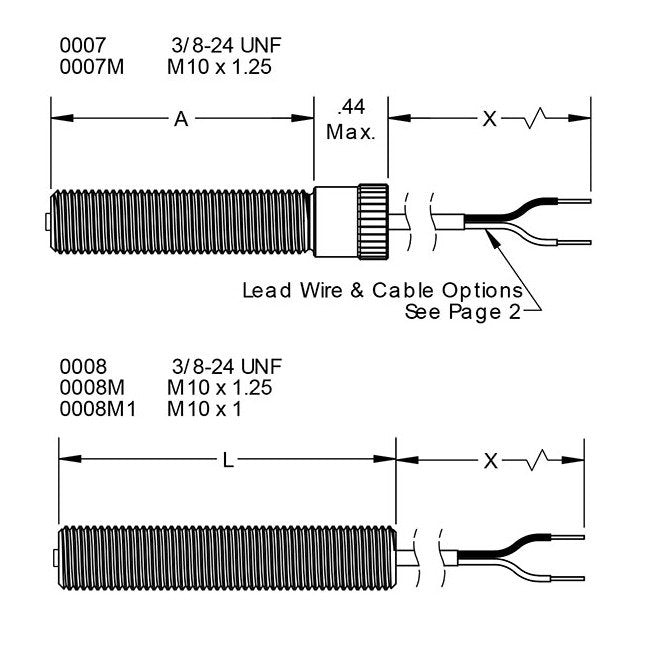

Technical Specs Lead Wire Material 2t
Polyvinyl Chloride (PVC)
Technical Specs Lead Wire Material 3t And 5ht
Tetrafluoroetheylene (TFE)
Technical Specs Lead Wire Material Resistance Temperature Detect
Tetrafluoroetheylene (TFE)
Technical Specs Lead Wire Size 2t
22 to 24 AWG
Technical Specs Lead Wire Size 3t And 5ht
22 AWG
Technical Specs Note For Connector
All have Gold Plated Contacts
Technical Specs Note For Peak To Peak Output Voltage
1000 IPS, 20-pitch gear at 0.005" gap, 100K Ohm load. Inductance and output voltage notations are maximum values.
Technical Specs Note For Pole Type
Flush (FP), Sealed Flush (FPS), Extended (EP), and Chisel Points (CP) are available. (CP must be oriented parallel with gear tooth.)
Technical Specs Note For Low Magnesium Magnetization
The Magnetization Level For Low Mag. Sensors Is Designated By A Suffix To The P/N. I.E.: 0008-11111-300G, Designing A Gauss Level Of 300(±50) Gauss. (Standard Mag. Level Will Not Have A Suffix.)
Technical Specs Peak To Peak Output Voltage Type 1
25 V
Technical Specs Peak To Peak Output Voltage Type 2
70 V
Technical Specs Peak To Peak Output Voltage Type 3
85 V
Technical Specs Peak To Peak Output Voltage Type 8
50 V

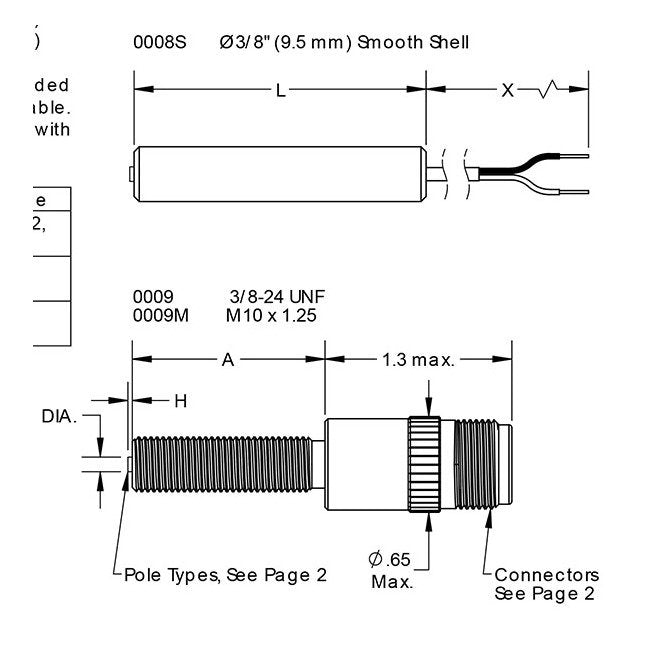

Technical Specs Pole Type
CP10 | EP40 | EP62 | EP93 | FP130 | FPS
Technical Specs Temperature Range 2t
-73 to 120 ºC | -100 to 250 ºF
Technical Specs Temperature Range 3t
-101 to 165 ºC | -150 to 330 ºF
Technical Specs Temperature Range 5ht
-268 to 232 ºC | -450 to 450 ºF
Technical Specs Low Magnesium Magnetization
250
Technical Specs Standard Magnetization
500 to 900 Gauss
