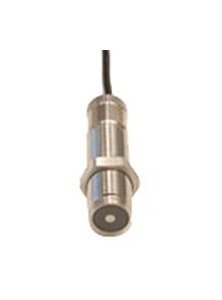

SPECTEC M14 Pickup Magnetic Variable Reluctance Speed Sensor
SPECTEC M14 Pickup Magnetic Variable Reluctance Speed Sensor
SKU:MAG-878cd0
High-performance M14 Magnetic Speed Sensor for diverse applications, built to withstand extreme conditions.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SPECTEC M14 Pickup Magnetic Variable Reluctance Speed Sensor
$299.99
Quantity: 1
Claim Your Seller Account
SPECTEC M14 Pickup Magnetic Variable Reluctance Speed Sensor
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPECTEC M14 Pickup Magnetic Variable Reluctance Speed Sensor is a top-tier solution for precision speed sensing in a wide range of applications. Featuring a compact 1/2" size, this sensor delivers high output voltage and exceptional configuration diversity. With options for different lengths, materials, and customizations, it offers unparalleled versatility. Built with durable 300 series stainless steel solid encapsulation, it ensures reliability in challenging environments. This sensor can be adapted for extreme temperatures, hazardous locations, and can be intrinsically safe or explosion/flame-proof, meeting the most stringent industry standards.
Product Specifications
Additional Information Additional Information
High temperature and cryogenic versions can be used in temperatures from -268°C to +232°C (-450°F to +450°F). Extreme temperature versions can be special ordered for temperatures up to 450°C (850°F). Intrinsically Safe and Explosion/Flame Proof versions are also available for Hazardous Locations. The output of this sensor can be converted to a digital signal with a Signal Amplifier. This sensor type can typically be replaced by an Amplified Variable Reluctance Speed Sensor or Hall Effect.
Note Note
For intrinsically safe versions refer to bulletins: IS40/41
Options Options
For different length, material of construction, configuration, special pole-piece types, thread size, hermetically sealed, precision custom magnetization, connector and/or cable termination, please contact factory.
Technical Specs Brands
Spectec
Technical Specs Coil Resistance Type 0
50 Ω
Technical Specs Coil Resistance Type 1
150 Ω
Technical Specs Coil Resistance Type 3
230 Ω
Technical Specs Coil Resistance Type 5
1800 Ω
Technical Specs Coil Resistance Type 6
2300 Ω
Technical Specs Coil Resistance Type B
650 Ω
Technical Specs Connector
1 Pin | 2 Pin | 4 Pin
Technical Specs Construction
300 Series Stainless SteelSolid Encapsulation
Technical Specs European Conformity Ce Compliance
European Standards (EN)50082-2 | European Standards (EN)55011
Technical Specs Gear Pitch For Ep62 And Cp10
⤠36 DP (MODULE 0.7)
Technical Specs Gear Pitch For Ep93
⤠26 DP (MODULE 0.98)
Technical Specs Gear Pitch For Fp131 And Fps130
⤠24 DP (Module 1.06)
Technical Specs Inductance Type 0
9 mH
Technical Specs Inductance Type 1
20 mH
Technical Specs Inductance Type 3
40 mH
Technical Specs Inductance Type 5
800 mH
Technical Specs Inductance Type 6
1100 mH
Technical Specs Inductance Type B
160 mH
Technical Specs Lead Wire Material 2t
Polyvinyl Chloride (PVC)
Technical Specs Lead Wire Material 3t And 5ht
Tetrafluoroetheylene (TFE)
Technical Specs Lead Wire Size 2t
22 AWG
Technical Specs Lead Wire Size 3t And 5ht
24 AWG
Technical Specs Note For Connector
All have Gold Plated Contacts
Technical Specs Note For Peak To Peak Output Voltage
1000 IPS, 20-pitch gear at 0.005" gap, 100K Ohm load. Inductance and output voltage notations are maximum values.
Technical Specs Note For Pole Type
Flush (FPx), Sealed Flush (FPSx) Extended (EPx), and Chisel Points (CPx) are available. (Chisel must be Oriented parallel with gear tooth.) 001 OX is shown with extended pole (EPx)
Technical Specs Note For Low Magnesium Magnetization
The Magnetization Level For Low Mag. Sensors Is Designated By A Suffix To The P/N. I.E.: 0011-11111-300G, Designing A Gauss Level Of 300(±50) Gauss. (Standard Mag. Level Will Not Have A Suffix.)
Technical Specs Peak To Peak Output Voltage Type 0
17 V
Technical Specs Peak To Peak Output Voltage Type 1
30 V
Technical Specs Peak To Peak Output Voltage Type 3
70 V
Technical Specs Peak To Peak Output Voltage Type 4
85 V
Technical Specs Peak To Peak Output Voltage Type 5
230 V
Technical Specs Peak To Peak Output Voltage Type 6
260 V
Technical Specs Pole Type
CP10 | EP62 | EP93 | FP130 | FPS130
Technical Specs Temperature Range 2t
-73 to 120 ºC | -100 to 250 ºF
Technical Specs Temperature Range 3t
-101 to 165 ºC | -150 to 330 ºF
Technical Specs Temperature Range 5ht
-268 to 232 ºC | -450 to 450 ºF
