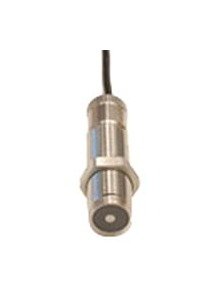

The SPECTEC M16 Digispec Magnetic Speed Sensor is a top-of-the-line amplified variable reluctance speed sensor that produces a digital frequency output proportional to speed. Equipped with an internal amplifier for constant pulse shaping and robust signal-to-noise ratio, this sensor ensures reliable performance even at lower RPMs and with a greater air gap. Featuring options for internal temperature probes, various gear pitches, and multiple pole types, this sensor offers customizable configurations to suit specific needs. Constructed with a 300 series stainless steel housing and solid epoxy encapsulation, it meets European Conformity (CE) Compliance standards, making it ideal for a wide range of applications.
Product Specifications
Note Note
The magnetization level for special or low mag. sensors, is designated as a suffix to the P/N, i.e.:0093 -xxxxx-300G, designating a gauss level of 300(±50). (Standard mag. level will not have a suffix.)
Options Options
Custom configurations, thread sizes, special materials, temperature probes (NTC10, RTD100, or others), Please contact sales.
Technical Specs Brands
Spectec
Technical Specs Connectorspins
3 Pin | 4 Pin | 6 Pin
Technical Specs Construction
300 Series Stainless Steel Housing Solid Epoxy Encapsulation
Technical Specs Direct Supply Current At 12 Volt V Voltage
⤠4 mA
Technical Specs Direct Supply Current At 24 Volt V Voltage
⤠10 mA
Technical Specs Direct Supply Current At 30 Volt V Open Circuit
⤠20 mA
Technical Specs Direct Supply Current At 5 Volt V Voltage
⤠2 mA
Technical Specs European Conformity Ce Compliance
European Standards (EN)50082-2 | European Standards (EN)55011
Technical Specs Gear Pitch For Ep188
⤠12 DP (MODULE 2.11)
Technical Specs Gear Pitch For Ep250
⤠5 DP (MODULE 5.1)
Technical Specs Gear Pitch For Ep62 And Cp10
⤠36 DP (MODULE 0.7)
Technical Specs Gear Pitch For Ep93
⤠26 DP (MODULE 0.98)
Technical Specs Gear Pitch For Fp130 Fps130 Ep106 Eps106 Ep125 A
⤠24 DP (MODULE 1.06)
Technical Specs Lead Wire And Assignments Bare
Cable Shielding
Technical Specs Lead Wire And Assignments Black
Common (-)
Technical Specs Lead Wire And Assignments Red
Supply (+)
Technical Specs Lead Wire And Assignments Whitegreen
Signal
Technical Specs Note For Operating Frequency
⥠30 KHz at increased signal level, varies with target size, distance and pickup sensitivity. (Options: ⤠100 kHz)
Technical Specs Note For Pole Type

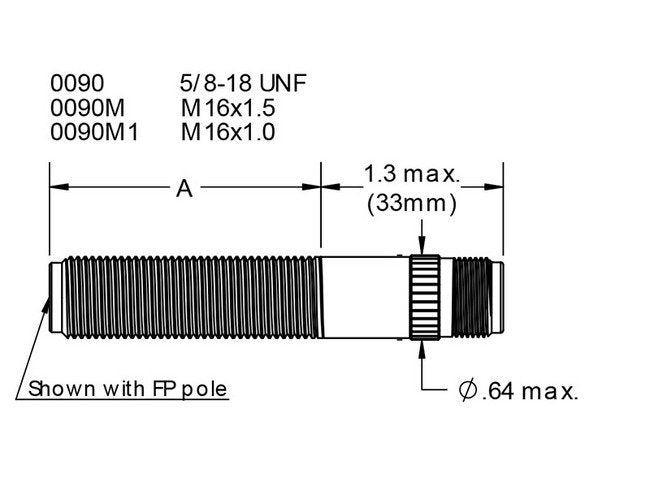

Flush (FP), Sealed Flush (FPS), Extended (EP) ,Sealed Extended (EPS), & Chisel Point (CP) Poles are available. (CP must be oriented parallel with gear tooth.
Technical Specs Operating Frequency
⥠3 to 10 kHz
Technical Specs Peak To Peak Input Sensitivity
5 mV | 12 mV | 30 mV
Technical Specs Pole Type
CP10 | CP45 | EP106 | EP125 | EP188 | EP250 | EP62 | EP93 | EPS106 | FP130 | FPS130
Technical Specs Risefall Time
0.04 µs | 0.16 µs
Technical Specs Standard Magnetization
⥠900 Gauss
Technical Specs Temperature Range 2te
-40 to 248 ºF | -40 to 120 ºC
Technical Specs Temperature Range 3te
-49 to 284 ºF | -45 to 140 ºC
Technical Specs Temperature Range Negative Temperature Coefficie
-40 to 248 ºF | -40 to 120 ºC
Technical Specs Temperature Range Resistance Temperature Detecto
-49 to 284 ºF | -45 to 140 ºC
Technical Specs Low Magnetization
250 Gauss
