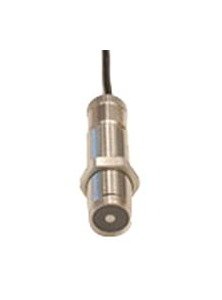

The Spectec M16 Pickup Magnetic Variable Reluctance Speed Sensor is a high-performance sensor designed for rugged applications. With a variety of coil resistance and inductance options, this sensor offers exceptional configuration diversity to meet a wide range of needs. Featuring a temperature range from -73 to 232°C, this sensor is suitable for extreme temperature environments. Compliant with European Standards (EN) and offering options for hazardous locations, this sensor is adaptable for various industrial settings.
Product Specifications
Additional Information Additional Information
High temperature and cryogenic versions can be used in temperatures from -268°C to +232°C (-450°F to +450°F). Extreme temperature versions can be special ordered for temperatures up to 450°C (850°F). Intrinsically Safe and Explosion/Flame Proof versions are also available for Hazardous Locations. The output of this sensor can be converted to a digital signal with a Signal Amplifier. This sensor type can typically be replaced by an Amplified Variable Reluctance Speed Sensor or Hall Effect.
Note Note
For CL 1, Div I and II hazardous location, Intrinsically Safe, and Non-Incendive versions; please refer to IS40/41 and N40/41.
Options Options
For special configurations, threads, materials of construction, and sanitary designs please contact factory.
Technical Specs Brands
Spectec
Technical Specs Coil Resistance Type 1
70 Ω
Technical Specs Coil Resistance Type 2
150 Ω
Technical Specs Coil Resistance Type 3
230 Ω
Technical Specs Coil Resistance Type 4
1100 Ω
Technical Specs Coil Resistance Type 5
1500 Ω
Technical Specs Coil Resistance Type 6
3000 Ω
Technical Specs Coil Resistance Type 7
5000 Ω
Technical Specs Coil Resistance Type A
2000 Ω
Technical Specs Coil Resistance Type B
600 Ω
Technical Specs Connector
2 Pin | 3 Pin | 4 Pin
Technical Specs Construction
300 Series Stainless Steel Housing | 416 Series Stainless Steel Pole | Solid Epoxy Encapsulation
Technical Specs European Conformity Ce Compliance
European Standards (EN)50022-2 | European Standards (EN)55011
Technical Specs Gear Pitch For Ep250
⤠5 DP (MODULE 5.1)
Technical Specs Gear Pitch For Ep62 And Cp10
⤠36 DP (MODULE 0.7)
Technical Specs Gear Pitch For Ep93
⤠26 DP (MODULE 0.98)
Technical Specs Gear Pitch For Fp130 Fps130 Ep106 Eps106 Ep125 A
⤠24 DP (MODULE 1.06)
Technical Specs Gear Pitch For Fp160 And Ep187
⤠12 DP (Module 2.11)
Technical Specs Inductance Type 1
25 mH
Technical Specs Inductance Type 2
85 mH
Technical Specs Inductance Type 3
120 mH
Technical Specs Lead Wire Material 2t
Polyvinyl Chloride (PVC)
Technical Specs Lead Wire Material 3t And 5ht
Tetrafluoroetheylene (TFE)
Technical Specs Lead Wire Material Resistance Temperature Detect
Tetrafluoroetheylene (TFE)
Technical Specs Lead Wire Size 2t
20 to 24 AWG
Technical Specs Lead Wire Size 3t And 5ht
20 AWG
Technical Specs Lead Wire Size Resistance Temperature Detector R
20 AWG
Technical Specs Note For Peak To Peak Output Voltage
1000IPS, 20-pitch gear at 0.005 gap. 100K hm load. Inductance and output voltage notations are maximum values.
Technical Specs Peak To Peak Output Voltage Type 1
40 V
Technical Specs Peak To Peak Output Voltage Type 2
50 V
Technical Specs Peak To Peak Output Voltage Type 3
70 V
Technical Specs Peak To Peak Output Voltage Type 4
180 V
Technical Specs Peak To Peak Output Voltage Type 5
230 V
Technical Specs Peak To Peak Output Voltage Type 6
290 V
Technical Specs Peak To Peak Output Voltage Type 7
330 V
Technical Specs Peak To Peak Output Voltage Type A
260 V
Technical Specs Peak To Peak Output Voltage Type B
120 V
