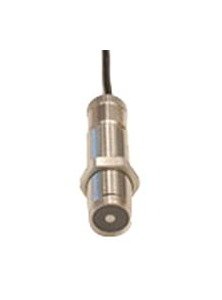

The Spectec M5 Lead Wire Type Magnetic Variable Reluctance Speed Sensor is a robust and versatile sensor designed for a wide range of applications. With features like high output voltage, varying configurations, and durable construction with stainless steel housing and solid epoxy encapsulation, this sensor ensures reliable performance in demanding environments. It offers precise measurements with specifications including a peak-to-peak output voltage of 25V, coil resistance of 100Ω, inductance of 16mH, and a temperature range from -101 to 165°C. Additionally, this sensor can be customized to meet specific requirements, making it ideal for both consumer and institutional buyers.
Product Specifications
Additional Information Additional Information
High temperature and cryogenic versions can be used in temperatures from -268°C to +232°C (-450°F to +450°F). Extreme temperature versions can be special ordered for temperatures up to 450°C (850°F). Intrinsically Safe and Explosion/Flame Proof versions are also available for Hazardous Locations. The output of this sensor can be converted to a digital signal with a Signal Amplifier. This sensor type can typically be replaced by an Amplified Variable Reluctance Speed Sensor or Hall Effect.
Caution Caution

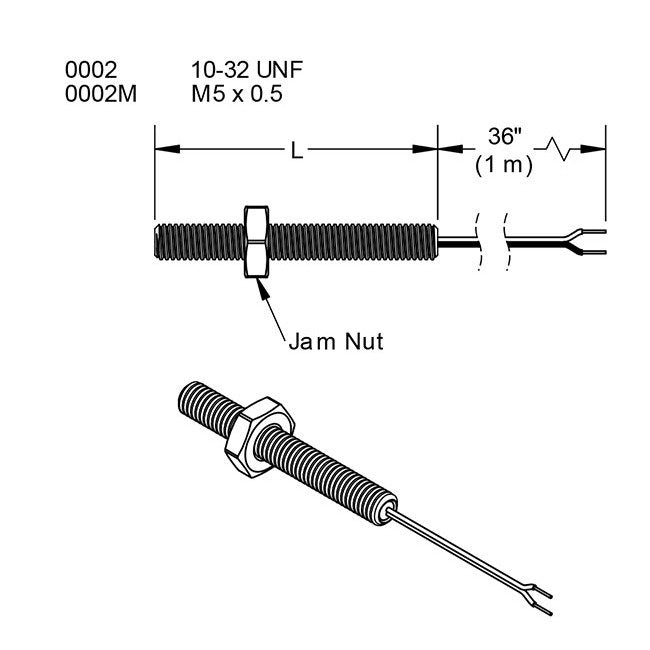

Do not over tighten jam nut max. torque is 0.5 ft.lbs (0.67 n.m)
Options Options
For different length, material of construction, configuration, special pole-piece types, thread size, hermetically sealed, precision custom magnetization, connector and/or cable termination, please contact sales.
Technical Specs Brands
Spectec
Technical Specs Coil Resistance
100 Ω
Technical Specs Construction
303 Stainless Steel HousingSolid Epoxy Encapsulation
Technical Specs European Conformity Ce Compliance
European Standards (EN)50082-2 | European Standards (EN)55011
Technical Specs Flush Pole Diameter
0.040 in
Technical Specs Inductance
16 mH
Technical Specs Lead Wire Material
Tetrafluoroethylene (TFE)
Technical Specs Lead Wire Size
30 AWG
Technical Specs Note For Peak To Peak Output Voltage
1000 IPS, 20-pitch gear at 0.005" gap, 100K Ohm load. Inductance and output voltage notations are maximum values.
Technical Specs Peak To Peak Output Voltage
25 V
Technical Specs Temperature Range 3t
-101 to 165 ºC | -150 to 330 ºF
Technical Specs Temperature Range 5ht
-268 to 232 ºC | -450 to 450 ºF
Technical Specs Magnetization
400 Gauss
