Spectec Variable Reluctance Speed Sensor Signal Amplifier
Spectec Variable Reluctance Speed Sensor Signal Amplifier
SKU:SIG-aec851
Enhance signal performance in industrial settings with the Spectec Variable Reluctance Speed Sensor Signal Amplifier, featuring a robust design and CE compliance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Spectec Variable Reluctance Speed Sensor Signal Amplifier
$129.99
Quantity: 1
Claim Your Seller Account
Spectec Variable Reluctance Speed Sensor Signal Amplifier
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Spectec Variable Reluctance Speed Sensor Signal Amplifier, designed for industrial applications, offers unmatched performance with Spectec's Noise Canceling Pickup Coil. With a versatile 6 to 36V DC supply voltage range, this rugged amplifier ensures precise signal transmission in harsh environments. Featuring opto-isolated outputs, input protection up to 200Vpp, and thermal shutdown, it meets European standards (EN)50082-2 and (EN)55011 for CE compliance.
Product Specifications
Technical Specs Brands
Spectec
Technical Specs Direct Current Dc Supply Voltage Vs
6 to 36 V
Technical Specs Direct Supply Current At 12 Volt V Voltage
⤠8.5 mA
Technical Specs Direct Supply Current At 24 Volt V Voltage
⤠17 mA
Technical Specs Direct Supply Current At 5 Volt V Voltage
⤠4 mA
Technical Specs European Conformity Ce Compliance
European Standards (EN)50082-2 | European Standards (EN)55011
Technical Specs Frequency Range
⤠10 kHz
Technical Specs Input Impedance
800 kOhm
Technical Specs Note For Direct Supply Current At 24 Volt V Volt
Single Channel Output
Technical Specs Operating Temperature
-40 to 85 ºC | -40 to 185 ºF
Technical Specs Opto Isolated Output For Optional Vo3
0-5V NPN TTL | 0-Vs NPN OC (Open Collector)
Technical Specs Output For Vol Vo2 Vo3
0-5V NPN TTL | 0-Vs NPN OC (Open Collector) | 0-Vs NPN/PNP
Technical Specs Protection Features
60V Load Dump | Input EMI Rejection | Inputs Protected to 200 Vpp | Lightning Protected | Output Shorted to Ground | Reverse Battery | Thermal Shutdown
Technical Specs Risefall Time
< 2 µs
Technical Specs Standard Input Peak To Peak Sensitivity
40 mV

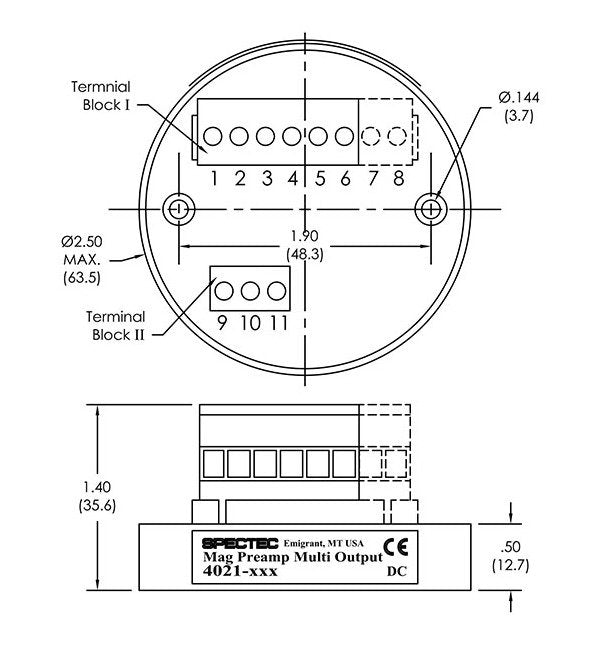

Technical Specs Terminals
Molex Series 86 plug in (supplied) | Terminal I - 6 or 8 Terminals | Terminal II - 3 Terminals
