Speedbite Low Pressure Adapter Couplings

Name: Speedbite Low Pressure Adapter Couplings
Brand: Bishop-Wisecarver
SKU: HEP-d43ab1
Price: 29.99 USD
Availability: OutOfStock

SKU:HEP-d43ab1

Upgrade tubing & pipe connections with Speedbite Low Pressure Adapter Couplings. SW375 & SF750CX connections for secure fit. Reliable performance under pressure.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your tubing and pipe connections with Speedbite Low Pressure Adapter Couplings. Designed for seamless integration, these couplings feature SW375 and SF750CX connections, ensuring a secure fit. The 1.38-inch hex on Connection 'A' and 2.25-inch length on Connection 'B' provide stability and durability. With Autoclave's high-quality design, these couplings offer reliable performance under pressure. Stock up on select products for efficient service. Consult with our experts for customized solutions.

Product Specifications

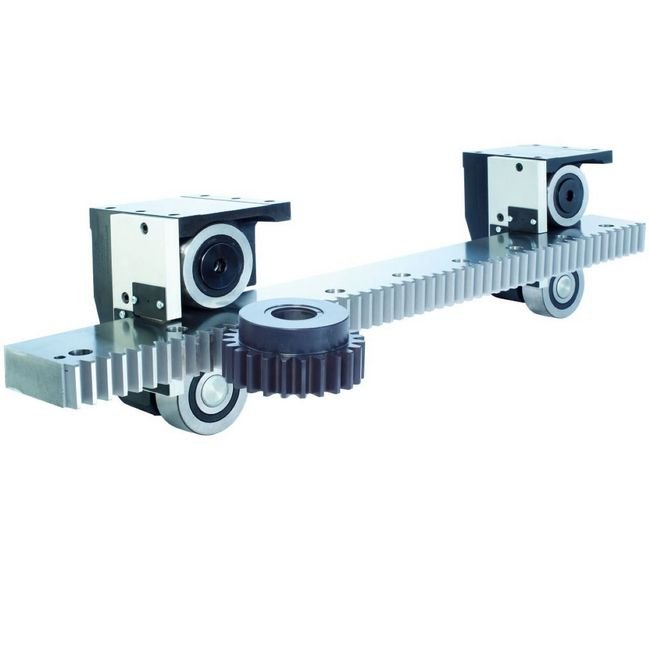

Bearing Blocks Bearing Blocks

Bearing blocks, each with three large integral crown rollers, are sealed for the life of the product for reduced friction and maintenance. This increases life and enables continuous operation. The top v groove bearing, which supports the heaviest load, is a tapered roller bearing for high capacity and rigidity. To remove play, rollers on the side and lower region are adjustable. The double-row tapered bearings are aligned in the direction of motion, allowing it to resist end loading and premature failure caused by axial loading.

Flat Tracks Flat Tracks

The MHD includes a pair of 100 by 40mm high precision flat tracks that are hardened and fully ground on all surfaces. Tracks of single lengths up to 1.4m can be joined for longer length applications.

Pinions Pinions

Available in two sizes to suit MHD flat tracks with both straight cut and helical racks, pinions have a metric module tooth form with a 20 degree pressure angle. Pinions are made from high quality case hardened steel, and the teeth are precision ground to ISO 1328 grade 6.The pinions are supplied with keyless locking bushings in order to be securely fitted to a standard h8 tolerance shaft.

Specifications Flat Track Length

1.4 m

Specifications Model

MHD

Specifications Pinions Material

Hardened Steel

Speedbite Low Pressure Adapter Couplings
