Speedetex® ESS Electronic Speed Switches

Speedetex® ESS Electronic Speed Switches

SPE-48be38

Ensure equipment safety with Speedetex® ESS Electronic Speed Switches for accurate speed monitoring in bulk material handling systems.

$499.99
$499.99
Sale

Initiate Order

Speedetex® ESS Electronic Speed Switches

Speedetex® ESS Electronic Speed Switches

$499.99

Quantity: 1

Claim Your Seller Account

Speedetex® ESS Electronic Speed Switches

Speedetex® ESS Electronic Speed Switches

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Speedetex® ESS Electronic Speed Switch is a reliable solution for monitoring the speeds of various machinery in bulk material handling systems. Designed to protect equipment from damage due to belt issues or overloads, this switch offers precise speed setting via an LCD display and immediate feedback with its dual tachometer/speed switch function. With features like built-in tachometer readout, NEMA-4 enclosure for durability, and fast response time, this switch ensures operational safety and efficiency in industries like mining, power plants, and more.

Product Specifications

Important Note 0
Custom Modifications available such as special shaft machining, diameters, mounting, finishes, supply voltage, etc.
Specifications Bearing Life
10000 hr. @ 5000 RPM (lower with radial side load)
Specifications Case Construction
NEMA 4
Specifications Direction Of Rotation
Either - No Effect
Specifications Housing
NEMA 4
Specifications Input Power Options
120 VAC and 240 VAC ± 10 % 50/60 Hz12 to 15 VDC, 22-30 VDC, and 100 to 130 VDC
Specifications Maximum Continuous Running Speed
5000 rpm
Specifications Maximum Radial Load
50 lbs | 22.7 kg
Specifications Mount

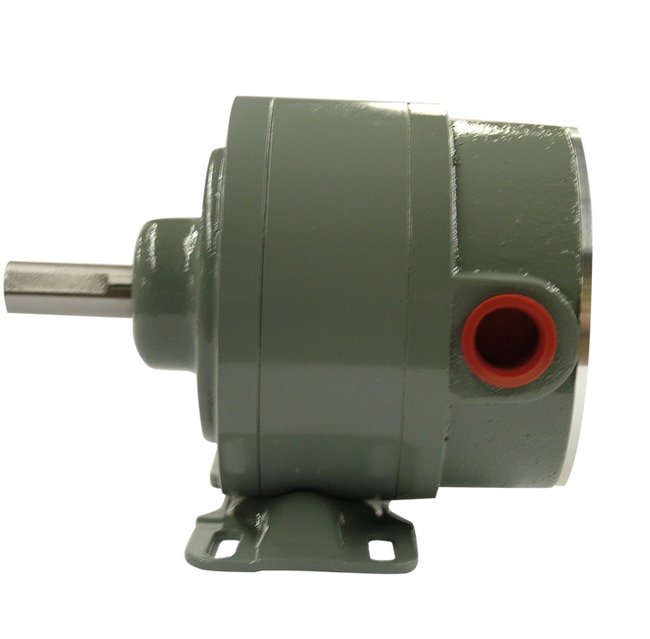

Foot
Specifications Operating Temperature Range
-22 to 150 ºF | -30 to 66 ºC
Specifications Output
Single
Specifications Output Power
10.0 amps contact rating @ 250 VAC/30 VDC
Specifications Power Failure Protection
Goes into alarm state on power failure
Specifications Prestart Delay
20 seconds (0.1 to 500 RPM) | 8 seconds (1 to 5000 RPM) (Underspeed mode)
Specifications Set Point Hysteresis
10 % (1 to 5000 RPM) | 20 % (0.1 to 500 RPM)
Specifications Set Point Resolution
1 Digit
Specifications Set Point Stability
± 1.5 % (1 to 5000 RPM) | ± 3 % (0.1 to 500 RPM) | Nominal 32 ºF to 105 ºF (0 ºC to 41 ºC)
Specifications Shaft Torque Required
4 oz/in | 0.0029 kg/m
Specifications Shipping Weight
4 Pound | 1.8 Kilogram
Specifications Speed
0.1 to 500.0
Specifications Speed Ranges
0.1 to 500.0 (1/60 turn response)
Specifications Voltage
12 to 15 VDC
Speed Switch Applications 0
Bucket ElevatorsBulk material handlingChemical processingConveyor systems (all types)Food processingFoundriesMining EquipmentOEM applicationsPaper ManufacturingPower PlantsRotary AirlocksSaw MillsSteel MillsSpecial machinery
Speed Switch Features 0

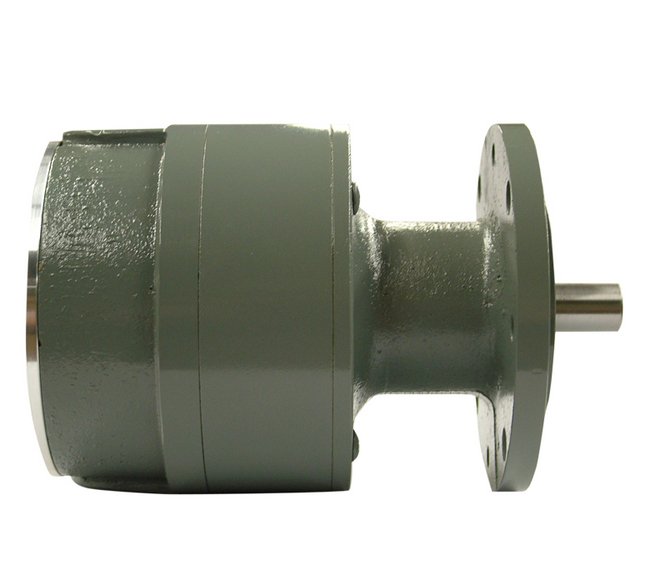

Unique direct digital set-point adjustmentBuilt-in tachometer readout of speedStart up delay in underspeed modeOutput state indicator alarm (output "ON" or "OFF")NEMA-4 enclosure of cast aluminum and steel housing5/8" shaft with double race ball bearingsOnly one moving partOperates reliably in "hostile" environmentsTrouble-free solid-state circuitryEither AC input/output or DC input/output as specifiedAvailable with C-face flange or standard-foot mountFast response (1/16 or 1/60 turn depending on model)Matching stub shafts and flex couplings available
Switch Operation 0

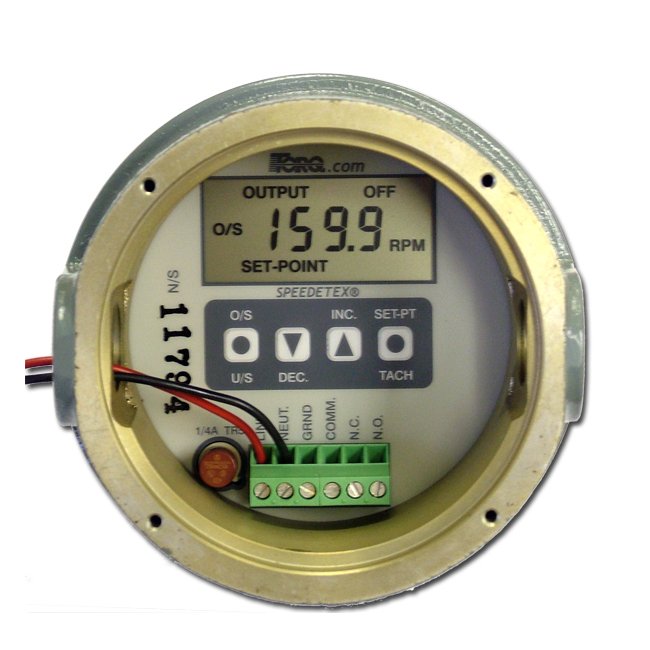

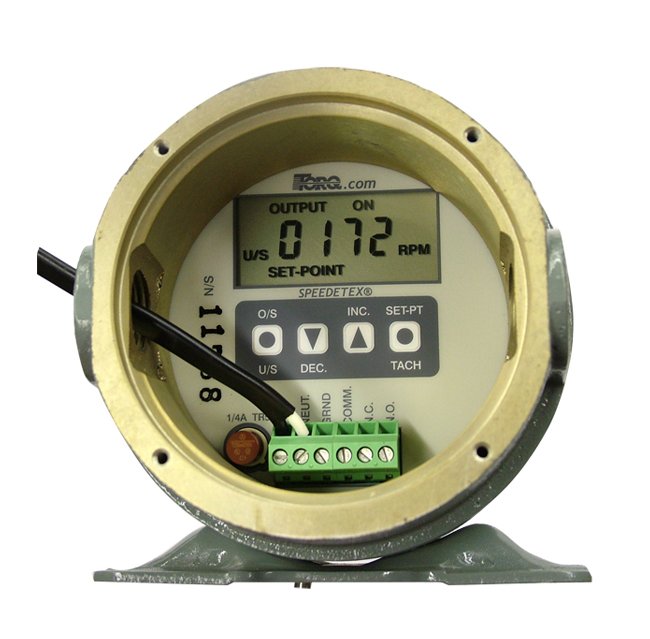

This rugged, completely self-contained NEMA-4 switch is a rotary shaft speed detector and tachometer. It will electronically detect either underspeed or overspeed. This is accomplished by set-point selection done directly thru pushbuttons and is displayed on the LCD readout. The actual shaft speed can be displayed on the LCD by a simple push of a button.When the shaft speed on a piece of equipment exceeds or falls below the set-point speed, change is immediately detected and output is provided via relay contacts to actuate motor contactors, audible alarms, warning lights, PLC's etc. Maximum response time is the time required to rotate 1/16 of a turn at the set speed for a standard unit, or 1/60 of a turn for the high response option, after the shaft passes through the set speed. The output condition is displayed as "ON" or "OFF". When "ON" is displayed, the driven speed exceeds the overspeed setpoint, or is below the underspeed set-point. The output relay is de-energized in this condition and the "Alarm" contact (N.C.), closed in the output relay. The ESS also falls into this condition under loss of power providing the logic that indicates "Alarm" under power failure to the ESS.
