SPHMEI 45 Degree Positionable Male Elbow - 1/4 in Tube OD
SPHMEI 45 Degree Positionable Male Elbow - 1/4 in Tube OD
SKU:SPH-9effc5
Enhance your connections with the SPHMEI 45 Degree Male Elbow - 1/4 in Tube OD. Durable, safe, and industry compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SPHMEI 45 Degree Positionable Male Elbow - 1/4 in Tube OD
$24.99
Quantity: 1
Claim Your Seller Account
SPHMEI 45 Degree Positionable Male Elbow - 1/4 in Tube OD
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

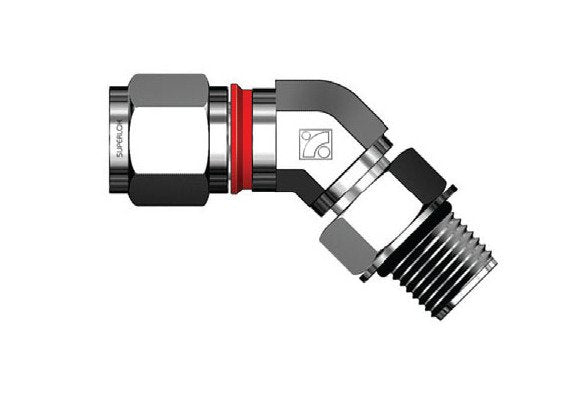

The SPHMEI Series 1/4 inch Tube OD 45 Degree Positionable Male Elbow is a precision-engineered fitting that seamlessly connects fractional tubes to SAE/MS straight threads. Constructed from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this male elbow ensures durability and corrosion resistance. Featuring innovative i-Fitting® components and a patented check ring design, it guarantees perfect compression, installer safety, and enhanced productivity. Ideal for valve connections in high-pressure and chemical environments, this elbow exceeds industry standards for reliability and performance.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

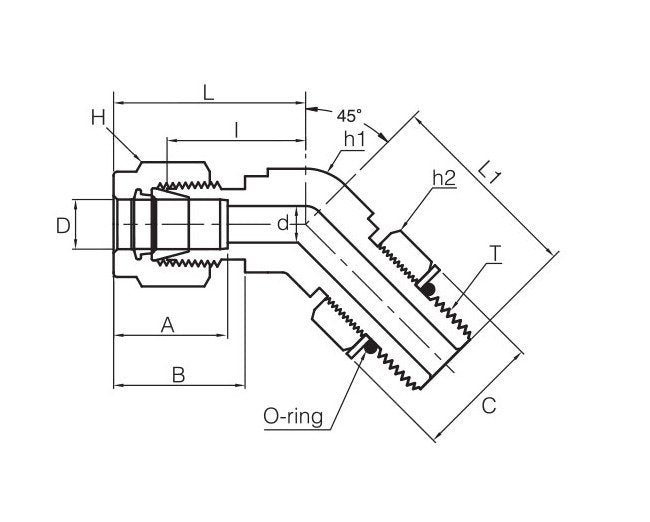

Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension C
16.51 mm
Technical Specs Dimension I
18.29 mm
Technical Specs Dimension L
25.64 mm
Technical Specs Dimension L1
25.65 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.83 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
7/16-20 mm
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
Technical Specs Width Across Flat H1
1/2 in
Technical Specs Width Across Flat H2
9/16 in
