SPHMEI Series 1" Tube OD 45° Male Elbow Connector
SPHMEI Series 1" Tube OD 45° Male Elbow Connector
SKU:SPH-a9a5b1
High-quality 1" male elbow connector for secure tube connections, with patented i-Fitting® design for safety and productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SPHMEI Series 1" Tube OD 45° Male Elbow Connector
$29.99
Quantity: 1
Claim Your Seller Account
SPHMEI Series 1" Tube OD 45° Male Elbow Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

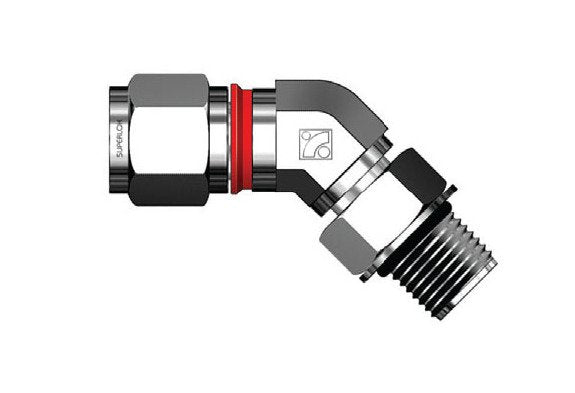

The SPHMEI Series 1-inch Tube Outside Diameter 45 Degree Positionable Male Elbow Connector is designed to securely connect fractional tubes to SAE/MS straight threads. Constructed from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this versatile fitting offers a patented i-Fitting® design that ensures perfect compression, improves safety in high-pressure environments, and enhances productivity. With dimensions meeting industry standards and compatibility with a range of materials, this male elbow connector is a reliable choice for various applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

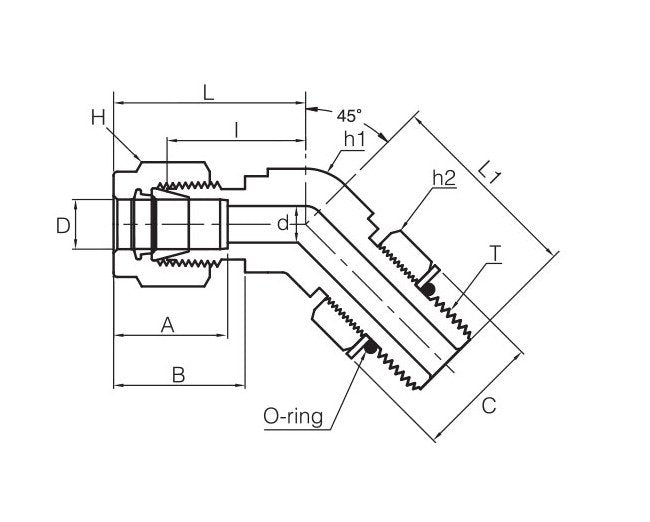

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.42 mm
Technical Specs Dimension C
43.94 mm
Technical Specs Dimension I
35.31 mm
Technical Specs Dimension L
47.5 mm
Technical Specs Dimension L1
50.55 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
22.35 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
1-5/16-12 mm
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
Technical Specs Width Across Flat H1
1-3/8 in
Technical Specs Width Across Flat H2
1-1/2 in
