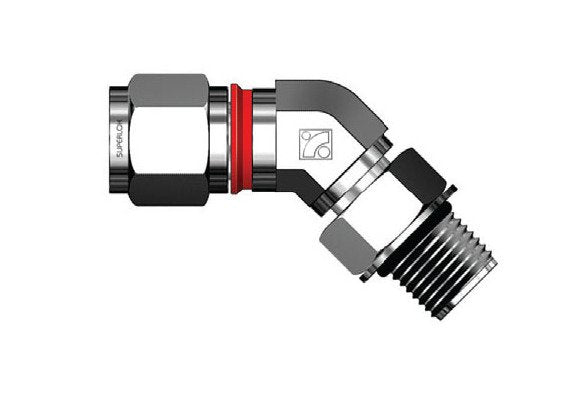

SPHMEI Series 18mm 45 Degree Positionable Male Elbow Connector

Name: SPHMEI Series 18mm 45 Degree Positionable Male Elbow Connector
Brand: Superlok-Mako Products LLC
SKU: SPH-0e8298
Price: 35.99 USD
Availability: OutOfStock

SKU:SPH-0e8298

Efficiently connect metric tubes to SAE/MS straight threads with the SPHMEI Series 18mm Male Elbow, featuring i-Fitting® components for safety and productivity.

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SPHMEI Series 18mm 45 Degree Positionable Male Elbow Connector seamlessly links metric tubes to SAE/MS straight threads. Crafted from high-quality materials like Alloy 625, Alloy 825, Stainless Steel, and more, this male elbow offers a secure and reliable connection. With i-Fitting® components including a check ring for precise compression, enhanced safety, and increased efficiency, this patented design by BMT is perfect for valve connections in high-pressure environments.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

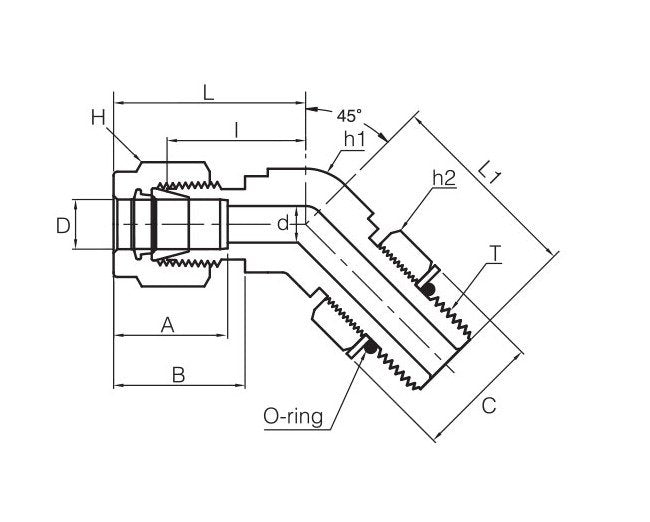

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Angle

45 Âº

Technical Specs Connection Type

Male

Technical Specs Dimension A

24.3 mm

Technical Specs Dimension B

24.8 mm

Technical Specs Dimension C

36.6 mm

Technical Specs Dimension I

29.7 mm

Technical Specs Dimension L

39.8 mm

Technical Specs Dimension L1

47.2 mm

Technical Specs Material

Technical Specs Minimum Dimension D

15.1 mm

Technical Specs Standard Size

6 to 25 mm

Technical Specs Straight Thread T U

1-1/16-12 mm

Technical Specs Tube Outside Diameter D

18 mm

Technical Specs Width Across Flat H

30 mm

Technical Specs Width Across Flat H1

28.6 mm

Technical Specs Width Across Flat H2

31.7 mm
