SPHMEI Series 6mm Tube 45° Positionable Male Elbow Connector

Name: SPHMEI Series 6mm Tube 45° Positionable Male Elbow Connector
Brand: Superlok-Mako Products LLC
SKU: SPH-600ead
Price: 29.99 USD
Availability: OutOfStock

SKU:SPH-600ead

Innovative SPHMEI 6mm Male Elbow for precise metric tube to SAE/MS straight thread connections.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

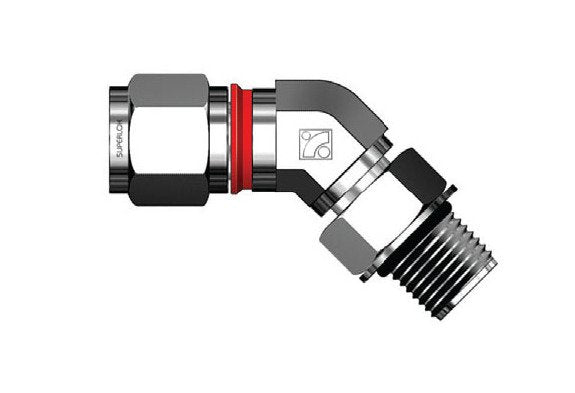

The SPHMEI Series 6mm Tube 45° Positionable Male Elbow Connector is designed to seamlessly connect metric tubes to SAE/MS straight threads. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this male elbow features innovative i-Fitting® components for perfect compression, installer safety, and increased productivity. Ideal for valve connections, this industry-leading design ensures precision, reliability, and compliance with stringent government procurement and industry-specific standards.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

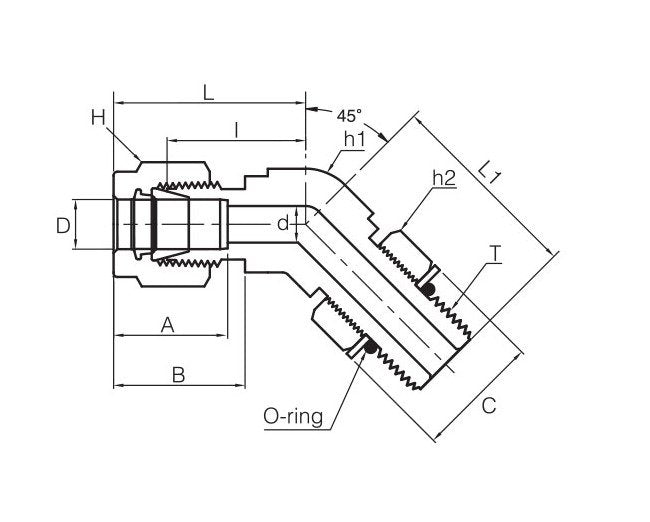

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Angle

45 Âº

Technical Specs Connection Type

Male

Technical Specs Dimension A

15.2 mm

Technical Specs Dimension B

17.7 mm

Technical Specs Dimension C

16.5 mm

Technical Specs Dimension I

18.3 mm

Technical Specs Dimension L

25.6 mm

Technical Specs Dimension L1

25.6 mm

Technical Specs Material

Technical Specs Minimum Dimension D

4.8 mm

Technical Specs Standard Size

6 to 25 mm

Technical Specs Straight Thread T U

7/16-20 mm

Technical Specs Tube Outside Diameter D

6 mm

Technical Specs Width Across Flat H

14 mm

Technical Specs Width Across Flat H1

12.7 mm

Technical Specs Width Across Flat H2

14.3 mm
