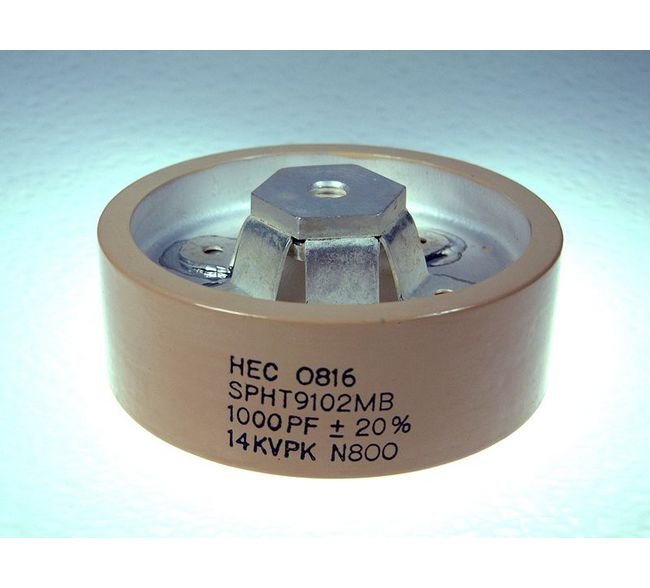

SPHT 100 mm Diameter Power Disk Ceramic Capacitors - High Voltage, High Performance
SPHT 100 mm Diameter Power Disk Ceramic Capacitors - High Voltage, High Performance
SKU:CER-c57834
High-performance SPHT ceramic capacitors - Up to 30kVDC, 90kVA, 100-7000pF, Class I TC options. Reliable choice for institutional buyers.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SPHT 100 mm Diameter Power Disk Ceramic Capacitors - High Voltage, High Performance
$129.99
Quantity: 1
Claim Your Seller Account
SPHT 100 mm Diameter Power Disk Ceramic Capacitors - High Voltage, High Performance
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPHT 100 mm Diameter Power Disk Ceramic Capacitors offer exceptional performance with up to 30 kVDC working voltage, 90 kVA power rating, and a capacitance range of 50 to 7000 pF. Available in 70, 100, 140, and 165 mm diameters, these capacitors come with four Class I TC options for precise tuning. Designed for reliability and efficiency, these capacitors ensure optimal power transfer and stability in high-voltage applications. Compliant with industry standards, they are ideal for demanding institutional and government procurement needs.
Product Specifications
Specifications Cap
100 pF

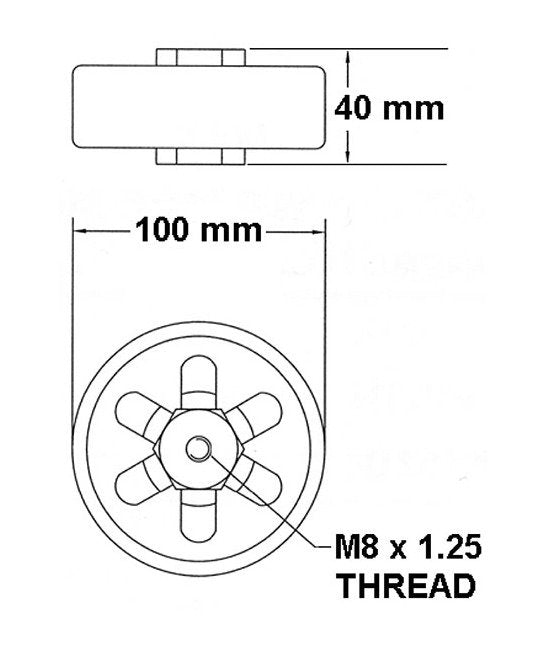

Specifications Diameter
100 mm
Specifications Dielectric Tc
NP0
Specifications Fh
48.7 MHz
Specifications Fl
0.649 MHz
Specifications Imax Rms
35 A
Specifications Smax
40 kV·A
Specifications Thread
M8
Specifications Vmax Dc
14 kV
