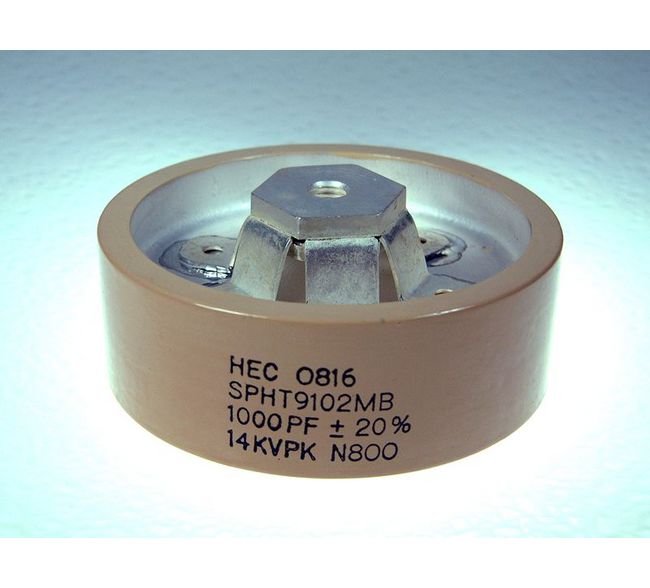

SPHT 100mm Power Disk Ceramic Capacitors

Name: SPHT 100mm Power Disk Ceramic Capacitors
Brand: High Energy Corp.
SKU: CER-806a8f
Price: 49.99 USD
Availability: OutOfStock

SKU:CER-806a8f

High-performance SPHT 100mm Ceramic Capacitors with up to 30kVDC Working Voltage, ideal for various applications. Choose from multiple Class I TC options.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SPHT 100mm Power Disk Ceramic Capacitors boast a high-performance design suitable for a range of applications with up to 30 kVDC Working Voltage, 90 kVA Power Rating, and 50 to 7000 pF Capacitance. With a diameter of 100mm and NP0 Dielectric, these capacitors offer reliable performance and durability. Choose from a variety of Class I TC options for optimal customization. Designed to meet stringent industry standards, these capacitors deliver exceptional reliability and efficiency for both consumer and institutional needs.

Product Specifications

Specifications Cap

400 pF

Specifications Diameter

100 mm

Specifications Dielectric Tc

NP0

Specifications Fh

12.2 MHz

Specifications Fl

0.221 MHz

Specifications Imax Rms

35 A

Specifications Smax

40 kV·A

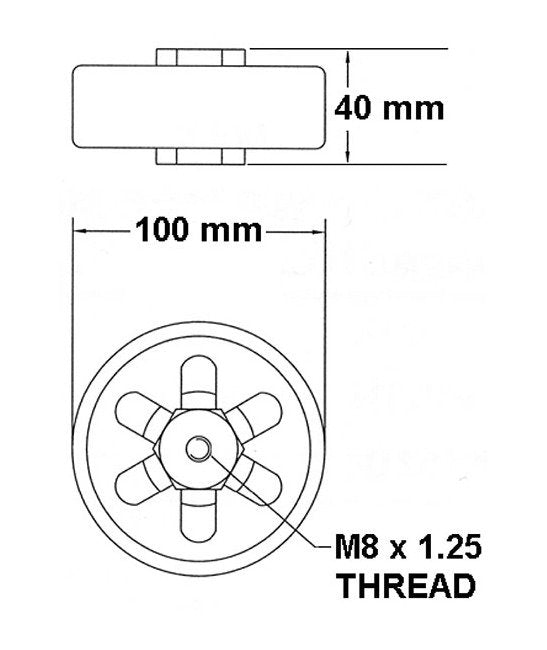

Specifications Thread

Specifications Vmax Dc

12 kV

SPHT 100mm Power Disk Ceramic Capacitors
