SPHT 155mm Ceramic Capacitors - High Voltage Power Disk
SPHT 155mm Ceramic Capacitors - High Voltage Power Disk
SKU:CER-014c57
High-performance SPHT 155mm Ceramic Capacitors for high-voltage applications, with up to 30 kVDC and 90 kVA, ideal for industrial usage.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SPHT 155mm Ceramic Capacitors - High Voltage Power Disk
$39.99
Quantity: 1
Claim Your Seller Account
SPHT 155mm Ceramic Capacitors - High Voltage Power Disk
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

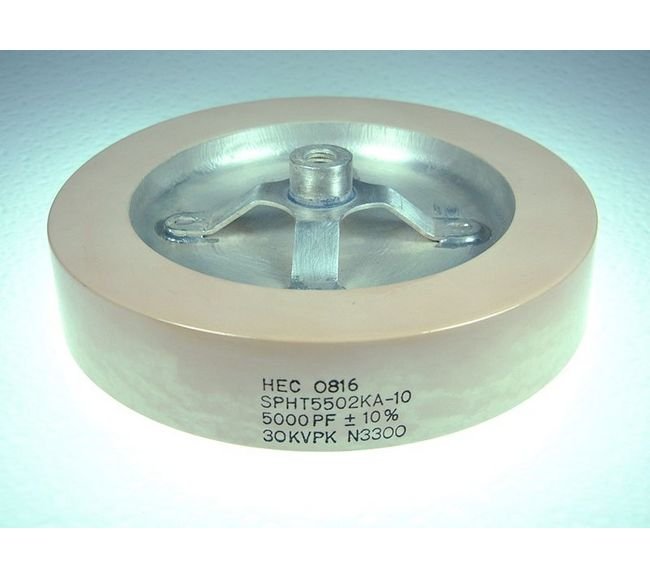

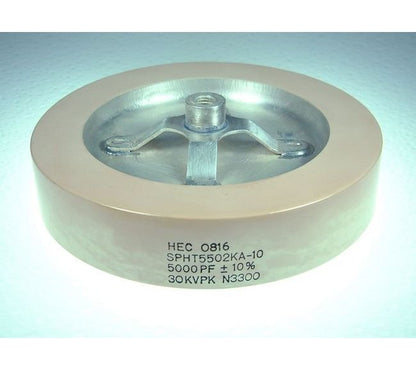

The SPHT 155mm Ceramic Capacitors are engineered to deliver exceptional performance in high-voltage applications. With a working voltage of up to 30 kVDC and a power rating of up to 90 kVA, these capacitors ensure robust and reliable operation. Available in capacitance ranging from 500 to 7000 pF, with a choice of capacitance tolerances including ±5%, ±10%, or ±20%, these capacitors cater to diverse industrial needs. The 155mm diameter design offers versatility, and with a selection of four Class I TC's, these capacitors provide precise and stable performance for critical systems. Whether for consumer electronics or institutional setups, these capacitors meet stringent standards for quality and reliability.
Product Specifications
Specifications Cap
500 to 7000 pF
Specifications Capacitance Tolerance
±5% | ±10% | ±20%

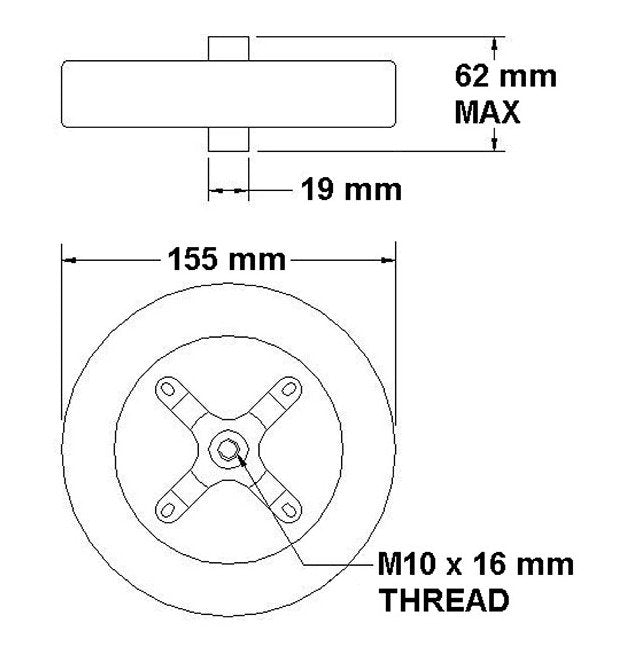

Specifications Diameter
155 mm
Specifications Thread
5/16-18 | M10 | M8
