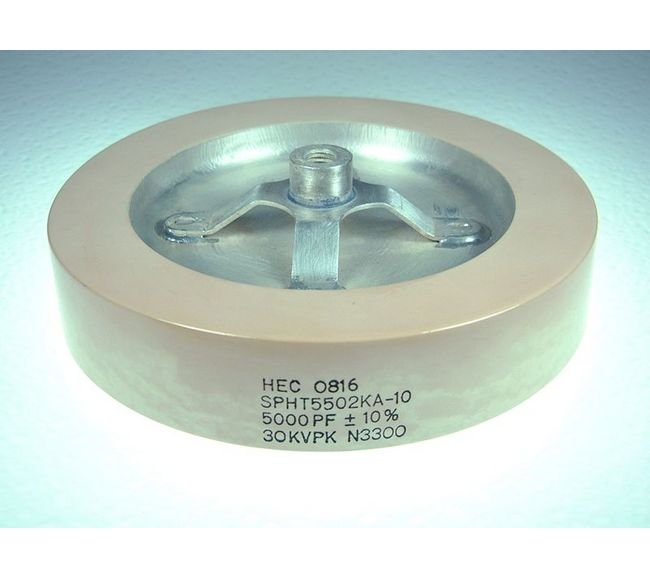

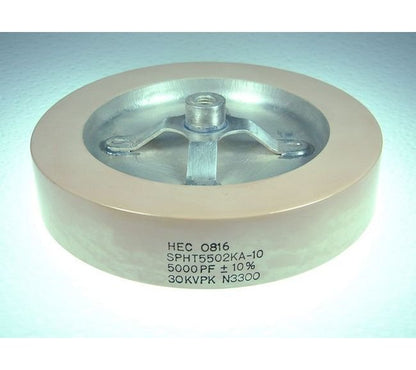

SPHT 155mm Diameter Power Disk Ceramic Capacitors - High Voltage, High Power Rating

SPHT 155mm Diameter Power Disk Ceramic Capacitors - High Voltage, High Power Rating

SKU:CER-53b63a

High voltage, high power ceramic capacitors with up to 30 kVDC, 90 kVA power rating, and 50-7000 pF capacitance.

Regular price $299.99
Regular price Sale price $299.99
Sale

Initiate Order

SPHT 155mm Diameter Power Disk Ceramic Capacitors - High Voltage, High Power Rating

SPHT 155mm Diameter Power Disk Ceramic Capacitors - High Voltage, High Power Rating

$299.99

Quantity: 1

Claim Your Seller Account

SPHT 155mm Diameter Power Disk Ceramic Capacitors - High Voltage, High Power Rating

SPHT 155mm Diameter Power Disk Ceramic Capacitors - High Voltage, High Power Rating

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SPHT 155mm Diameter Power Disk Ceramic Capacitors are designed for high-performance applications, offering a working voltage of up to 30 kVDC and a power rating of up to 90 kVA. With a capacitance range of 50 to 7000 pF, these capacitors come in diameters of 70mm, 100mm, 140mm, and the featured 155mm, providing flexibility for various setups. Additionally, they feature a choice of four Class I TC's for precise tuning and performance optimization, making them ideal for demanding industrial and institutional environments that require reliability and efficiency.

Product Specifications

Specifications Cap
1500 pF

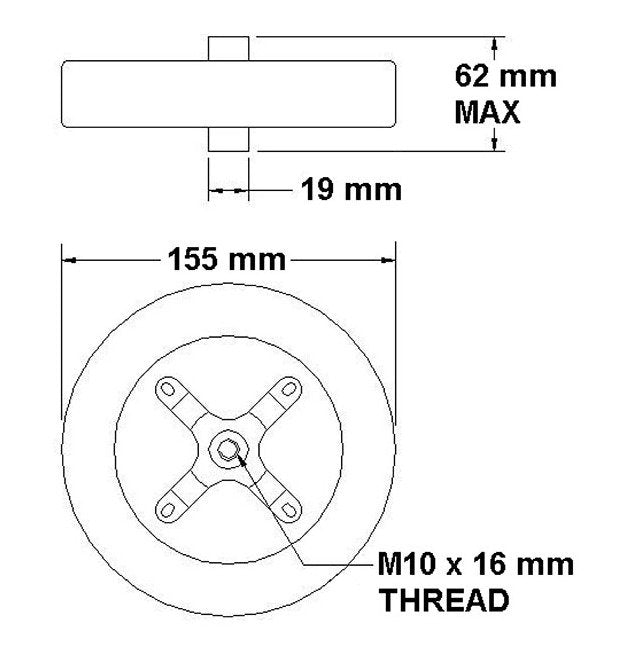

Specifications Diameter
155 mm
Specifications Dielectric Tc
N800
Specifications Fh
0.265 MHz
Specifications Fl
0.0212 MHz
Specifications Imax Rms
15 A
Specifications Smax
90 kV·A
Specifications Thread
M10
Specifications Vmax Dc
30 kV
