SPHT 155mm Power Disk Ceramic Capacitors
SPHT 155mm Power Disk Ceramic Capacitors
SKU:CER-494ec4
High-performance SPHT 155mm ceramic capacitors with up to 30 kVDC, 90 kVA power rating, and 50-7000 pF capacitance. Reliable and compliant for institutional use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SPHT 155mm Power Disk Ceramic Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
SPHT 155mm Power Disk Ceramic Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPHT 155mm Power Disk Ceramic Capacitors are designed for high-performance applications, with a working voltage of up to 30 kVDC and a power rating of up to 90 kVA. These capacitors offer a capacitance range of 50 to 7000 pF, ensuring flexibility in various circuit designs. With diameters ranging from 70 to 165 mm and a choice of four Class I TC options, these capacitors provide precise control and reliability in demanding environments. Compliant with federal procurement standards, GSA requirements, and FAR compliance factors, the SPHT capacitors are ideal for government and institutional use.
Product Specifications
Specifications Cap
500 pF

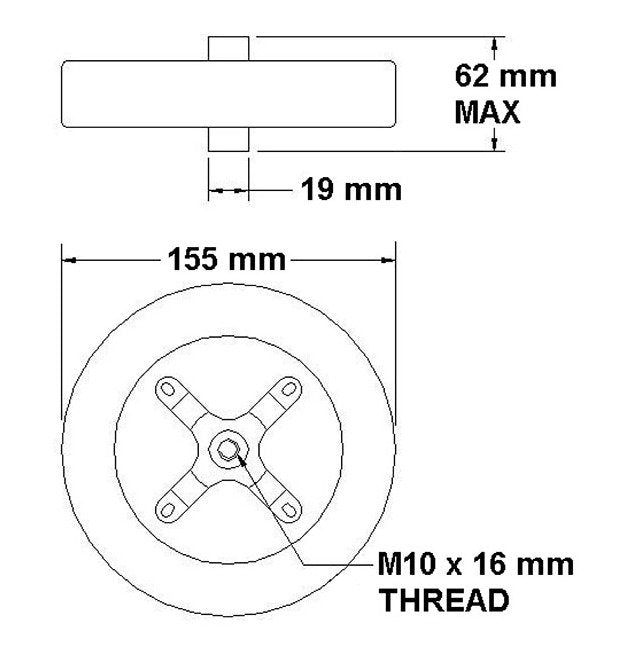

Specifications Diameter
155 mm
Specifications Dielectric Tc
NP0

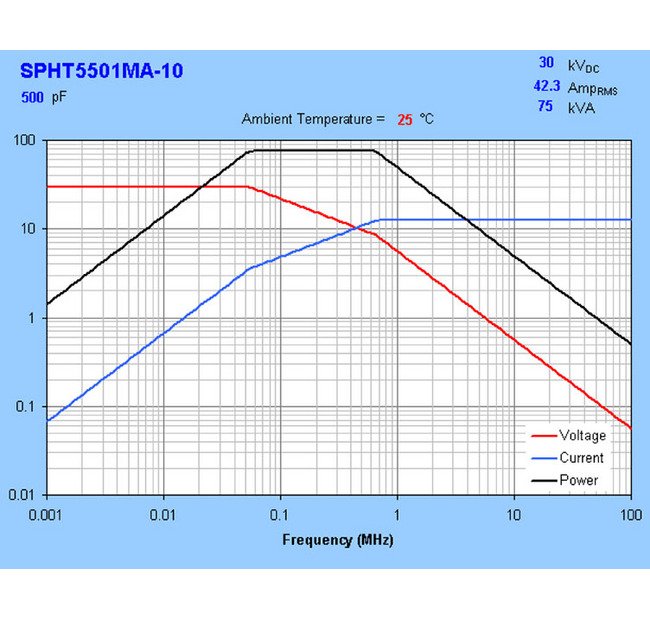

Specifications Fh
0.662 MHz
Specifications Fl
0.0530 MHz
Specifications Imax Rms
12.5 A
Specifications Smax
75 kV·A
Specifications Thread
M10
Specifications Vmax Dc
30 kV
