SPHT 155mm Power Disk Ceramic Capacitors
SPHT 155mm Power Disk Ceramic Capacitors
SKU:CER-01c205
High-performance SPHT 155mm Ceramic Capacitors with up to 30 kVDC and 90 kVA rating for reliable high-power circuitry.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SPHT 155mm Power Disk Ceramic Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
SPHT 155mm Power Disk Ceramic Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

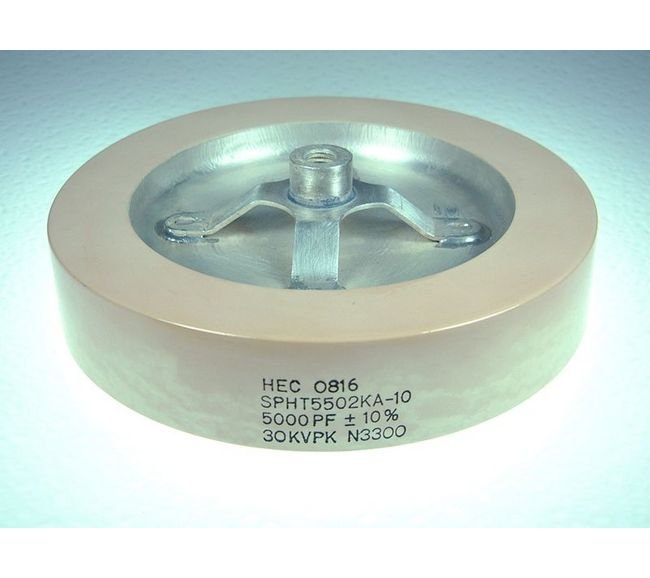

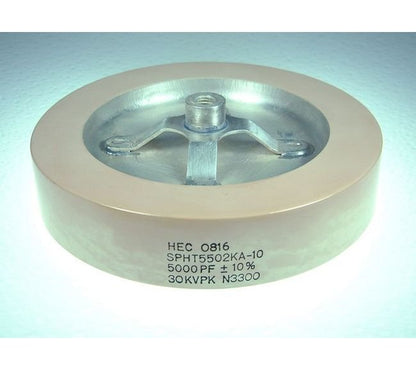

The SPHT 155 mm Diameter Power Disk Ceramic Capacitors offer exceptional performance for institutional and consumer electronic applications. With a robust up to 30 kVDC working voltage, a power rating of up to 90 kVA, and a capacitance range from 50 to 7000 pF, these capacitors ensure reliable operation in high-power circuits. Available in 70, 100, 140, and 165 mm diameters, with a choice of four Class I TC's, these capacitors provide versatility and precision in various electrical setups.
Product Specifications
Specifications Cap
2500 pF
Specifications Diameter
155 mm
Specifications Dielectric Tc
N800
Specifications Fh
0.159 MHz
Specifications Fl
0.0127 MHz
Specifications Imax Rms
15 A
Specifications Smax
90 kV·A
Specifications Thread
M10
Specifications Vmax Dc
30 kV
