SPHT 155mm Power Disk Ceramic Capacitors - High Voltage, High Power Rating

Name: SPHT 155mm Power Disk Ceramic Capacitors - High Voltage, High Power Rating
Brand: High Energy Corp.
SKU: CER-4a4f64
Price: 49.99 USD
Availability: OutOfStock

SKU:CER-4a4f64

High-performance SPHT 155mm Power Disk Ceramic Capacitors for high-voltage, high-power applications. Up to 30 kVDC, 90 kVA.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

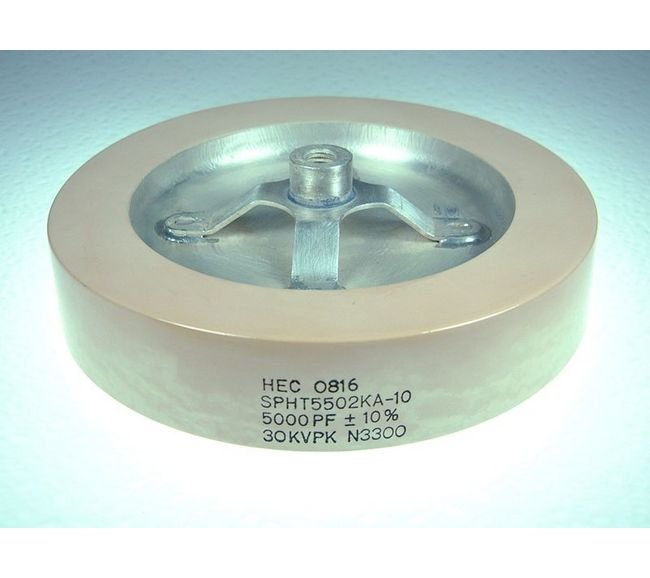

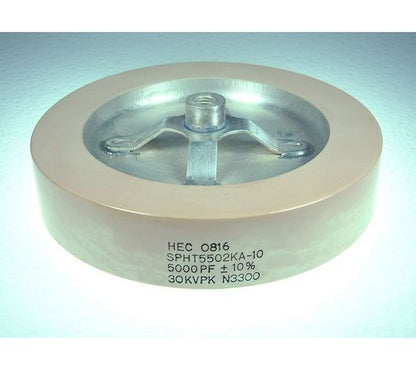

The SPHT 155 mm Diameter Power Disk Ceramic Capacitors are designed to meet the stringent requirements of high-power applications with up to 30 kVDC working voltage and a remarkable 90 kVA power rating. Offering a capacitance range of 50 to 7000 pF, these capacitors come in 155mm diameter size and feature a choice of four Class I TC's for exceptional performance and reliability. Engineered for precision and durability, these capacitors are ideal for applications demanding high voltage and power handling capabilities.

Product Specifications

Specifications Cap

6000 pF

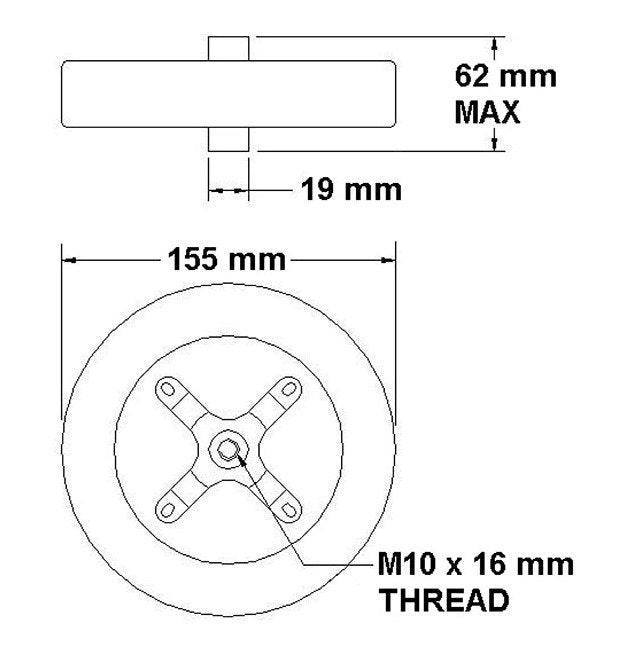

Specifications Diameter

155 mm

Specifications Dielectric Tc

N3300

Specifications Fh

0.0662 MHz

Specifications Fl

0.0053 MHz

Specifications Imax Rms

15 A

Specifications Smax

90 kV·A

Specifications Thread

M10

Specifications Vmax Dc

30 kV
