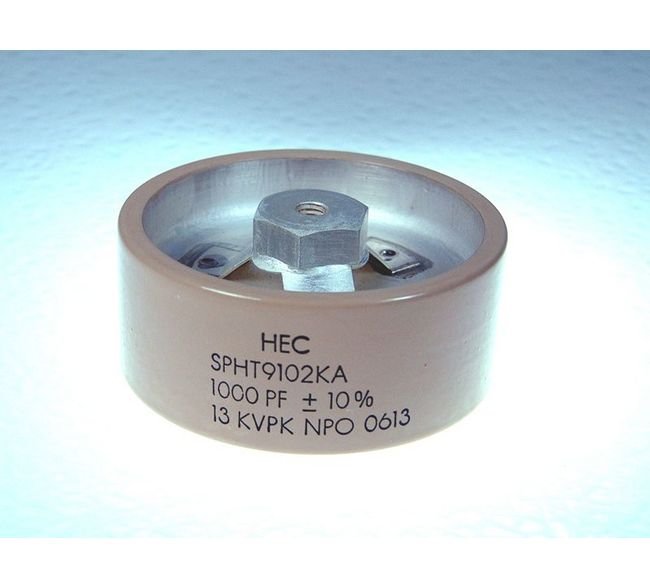

SPHT 70 mm Power Disk Ceramic Capacitors
SPHT 70 mm Power Disk Ceramic Capacitors
SKU:CER-61fb79
High-performance 70 mm ceramic capacitors for institutional and commercial use, offering up to 14 kVDC, 20 kV·A power rating, and N750 dielectric.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SPHT 70 mm Power Disk Ceramic Capacitors
$34.99
Quantity: 1
Claim Your Seller Account
SPHT 70 mm Power Disk Ceramic Capacitors
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPHT 70 mm Power Disk Ceramic Capacitors offer unparalleled performance for institutional and commercial applications. With a working voltage of up to 14 kVDC and a power rating of 20 kV·A, these capacitors ensure reliable and efficient operation. The capacitors feature a capacitance range of 50 to 7000 pF, making them versatile for various electronic systems. Additionally, the N750 dielectric material and Class I TCs provide exceptional reliability and stability under demanding conditions. Choose the SPHT series for superior quality and performance that meets the stringent standards of government and institutional procurement.
Product Specifications
Specifications Cap
200 pF

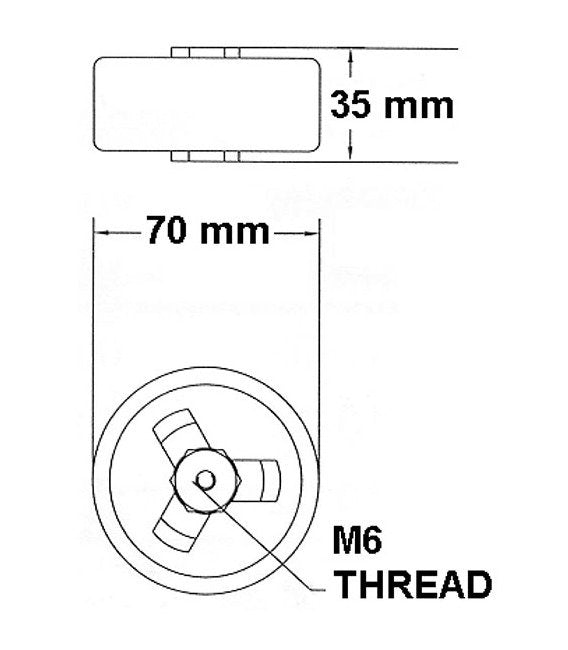

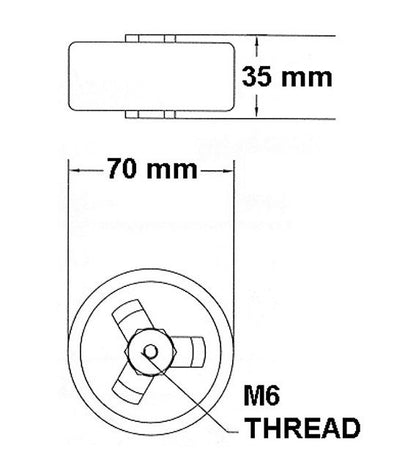

Specifications Diameter
70 mm
Specifications Dielectric Tc
N750
Specifications Fh
10.2 MHz
Specifications Fl
0.162 MHz
Specifications Imax Rms
16 A
Specifications Smax
20 kV·A
Specifications Thread
M6
Specifications Vmax Dc
14 kV
