SPHT 70mm Ceramic Capacitors - 14 kV, 16A, NP0 Dielectric
SPHT 70mm Ceramic Capacitors - 14 kV, 16A, NP0 Dielectric
SKU:CER-b2e514
Reliable SPHT 70mm Ceramic Capacitors - Ideal for High-Voltage Applications
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SPHT 70mm Ceramic Capacitors - 14 kV, 16A, NP0 Dielectric
$49.99
Quantity: 1
Claim Your Seller Account
SPHT 70mm Ceramic Capacitors - 14 kV, 16A, NP0 Dielectric
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

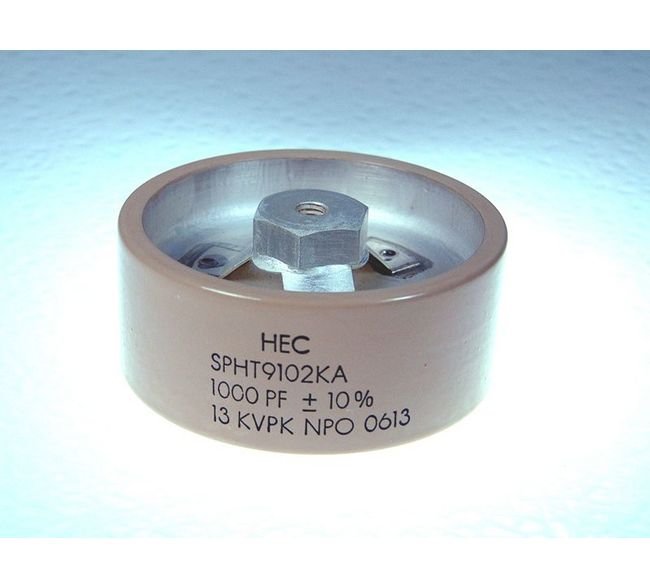

The SPHT 70 mm Diameter Power Disk Ceramic Capacitors deliver unrivaled performance in high-voltage applications, with a maximum working voltage of 14 kVDC and a power rating of 20 kV·A. These capacitors offer a capacitance range from 50 to 7000 pF, making them versatile for a wide range of electrical setups. With a choice of four Class I TC's and NP0 dielectric, these capacitors ensure exceptional stability and reliability. Meeting stringent quality standards, these capacitors are ideal for government and institutional procurement needs, providing unmatched performance and durability.
Product Specifications
Specifications Cap
50 pF

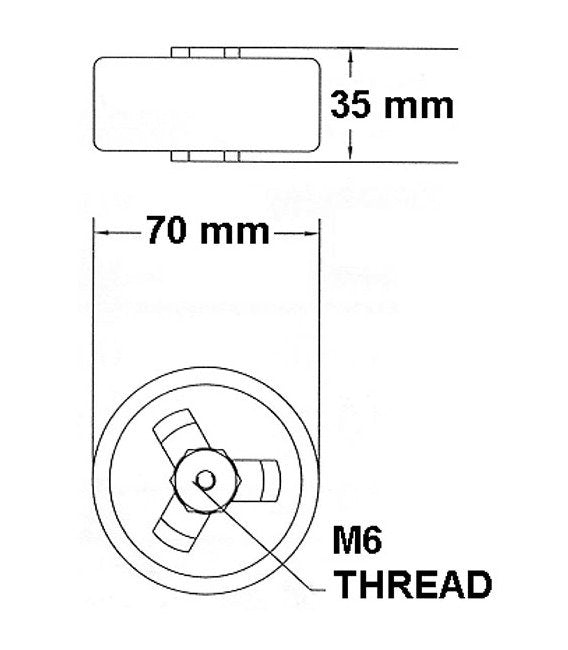

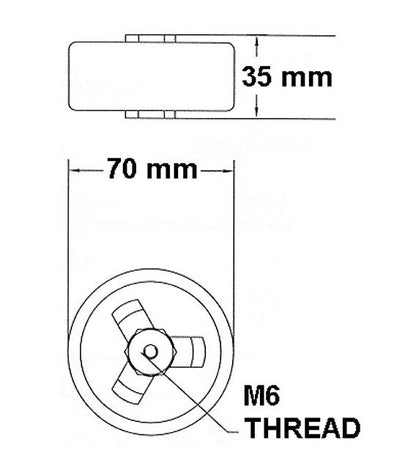

Specifications Diameter
70 mm
Specifications Dielectric Tc
NP0
Specifications Fh
40.7 MHz
Specifications Fl
0.649 MHz
Specifications Imax Rms
16 A
Specifications Smax
20 kV·A
Specifications Thread
M6
Specifications Vmax Dc
14 kV
