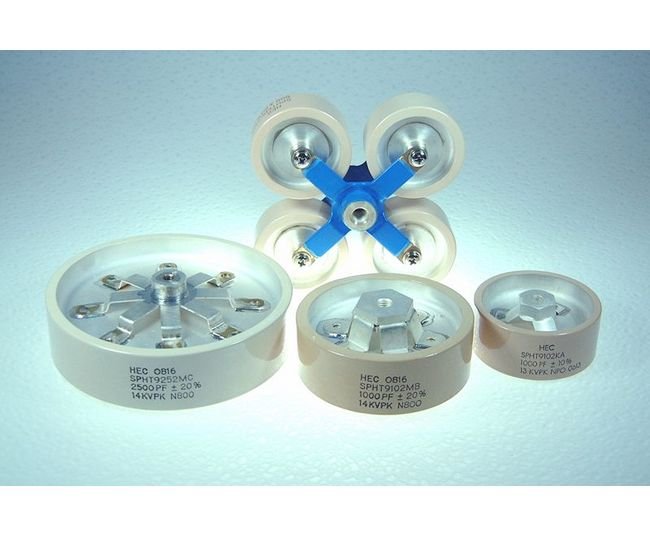

The SPHT Ferris Wheel Ceramic Capacitors from our exclusive SPHT Series are meticulously engineered Class 1 components designed to meet the stringent requirements of high-power RF applications. With exceptional high voltage, current, and power ratings, low self-inductance, and low dissipation factors, these 'Power-Disk' capacitors feature the innovative 'Ferris-Wheel' configuration for enhanced performance and reliability. Encased in phenolic resin coating with a long flashover path, these capacitors offer a broad range of capacitance and temperature coefficients suitable for RF transmitter circuits, antenna couplings, and other demanding RF applications. Experience durability and longevity with the simple yet robust structure of SPHT Ferris Wheel Ceramic Capacitors.
Product Specifications
Specifications Cap
2000 pF
Specifications Capacitance Tolerance
From ±2.5% to ±20% and from ±2.5 pF to ±1 pF
Specifications Dielectric Strength Test
Will withstand a DC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.

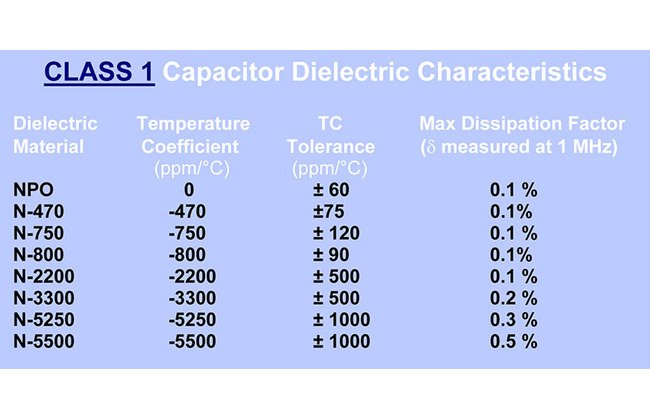

Specifications Dielectric Tc
N800
Specifications Dimension L
80 mm
Specifications Fh
0.745 MHz
Specifications Fl
0.0596 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
37.5 A
Specifications Maximum Dissipation Factor
0.1% to 0.5%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
150 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), TC and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 20 inch-pounds or less
Specifications Vmax Dc
20 kV
