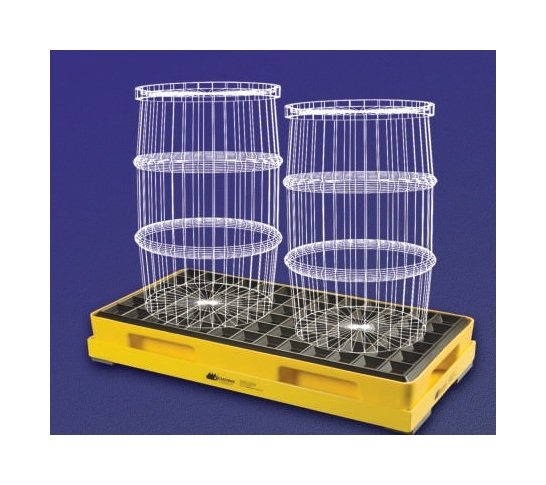

The Model 4042-26x52⢠Spill Containment Dual Drum Scale by Scaletron⢠is designed to accurately display the weight of chemicals while containing spills within its basin. With a rugged steel construction and corrosion-resistant finish, this scale meets secondary spill containment requirements set by EPA, OSHA, and local agencies. Featuring a load capacity range of 0 to 3000 lb, 4-20 mA output, and sealed load cells, it ensures accurate and reliable measurements for industrial applications.
Product Specifications
Additional Information Additional Information
Standard indicator: 3-1/2 digit LCD display with easy readability to 1 lb. (kg), 0.1lb (kg)
Chemicals Chemicals
Scale is designed to accurately measure weight of alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders
Digital Controllers Digital Controllers
Indicator - 3-1/2 DigitPlatform Size & (Containment Capacities) - 26" x 52" (30 gal.) - other sizes availablePlatform Height - 3-1/2" high (88.0 mm)Gross Capacity - 0.5% of full capacityAccuracy - 0.5% of full capacityResolution - 0.1 up to 199.9, or 1.0 over 200 lbs. (kg)4-20 mA - Standard - scale or loop poweredLevel Indication/Relay Contacts - OptionalPower - 85 VAC to 265 VACEnclosure - NEMA 4X, UL Approved EnclosureShipping Weight - 142 lbs.Indicator - 4-1/2 DigitPlatform Size & (Containment Capacities) - 26" x 52" (30 gal.) - other sizes availablePlatform Height - 3-1/2" high (88.0 mm)Gross Capacity - Up to 3000 lbs. (1361 kg) - other capacities available (150% overload protection is provided)Accuracy - 0.5% of full capacityResolution - 0.1 up to 999.9, or 1.0 over 1000 lbs. (kg)4-20 mA - Standard - scale or loop poweredLevel Indication/Relay Contacts - (2) StandardPower - 120 VAC, 50/60 Hz, 0.3 A240 VAC, 50/60 Hz, 0.15 AEnclosure - NEMA 4X, UL Approved EnclosureShipping Weight - 142 lbs.Indicator - 1020â¢Platform Size & (Containment Capacities) - 26" x 52" (30 gal.) - other sizes availablePlatform Height - 3-1/2" high (88.0 mm)Gross Capacity - Up to 3000 lbs. (1361 kg) - other capacities available (150% overload protection is provided)Accuracy - 0.01%-0.25% full capacityResolution - 0.1 up to 999.9, or 1.0 over 1000 lbs. (kg)4-20 mA - Standard on Channel 1, Optional on Channel 2 - loop poweredLevel Indication/Relay Contacts - Optional - Up to 4 (as high or low) on one channel or more than one per channel for a total of 4 set points with relay contractPower - 85 VAC to 265 VACEnclosure - NEMA 4X, UL Approved EnclosureShipping Weight - 142 lbs.Indicator - 1099â¢C.P.C.Platform Size & (Containment Capacities) - 26" x 52" (30 gal.) - other sizes availablePlatform Height - 3-1/2" high (88.0 mm)Gross Capacity - Up to 3000 lbs. (1361 kg) - other capacities available (150% overload protection is provided)Accuracy - 0.01%-0.25% full capacityResolution - 0.1 up to 999.9, or 1.0 over 1000 lbs. (kg)4-20 mA - Standard on Channel 1 - loop powered (available for Channels 2 thru 4)Level Indication/Relay Contacts - Optional - Up to 4 (as high or low) on one channel or more than one per channel for a total of 4 set points with relay contractPower - 85 VAC to 265 VACEnclosure - NEMA 4X, UL Approved EnclosureShipping Weight - 142 lbs.
Options Options

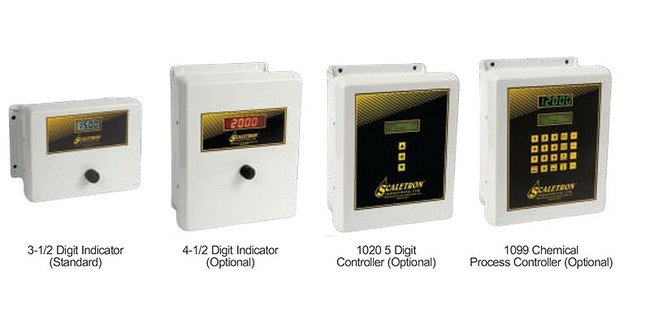

240 VAC power (4-1/2 digit display)4-1/2 digit display with active and passive 4-20 mA, 0-20 mA, and -8 to +12 mA, and two adjustable low level contactsModel 1020⢠5 digit controller with loop powered 4-20 mA, up to four adjustable set points and one or two channelsModel 1099⢠Chemical Process ControllerRemote mounting of indicator box up to 200 feet (61 meters) awayJunction box - Additional length of wire cable
Scale Base Containment Capacity
30 gal

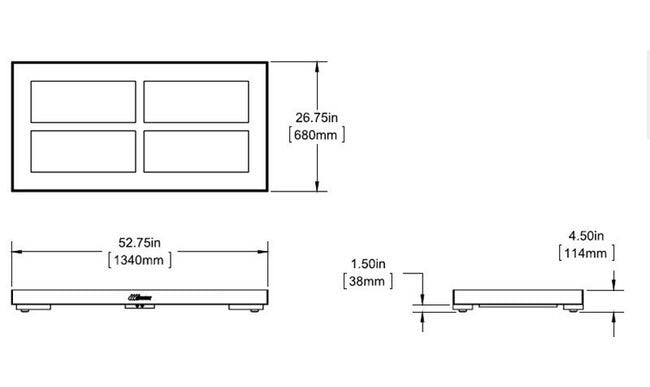

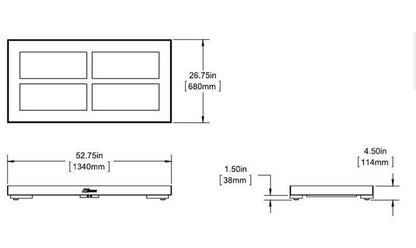

Scale Base Platform Length A
52.75 in | 1340 mm
Scale Base Platform Width B
26.75 in | 680 mm
Specifications Accuracy
0.1 to 0.5 %
Specifications Alternating Current Ac Voltage
240 V
Specifications Conductor Wire Cable Size
20 ft
Specifications Enclosure
National Electrical Manufacturer Association (NEMA) 4X | Underwriters Laboratories (UL) Approved
Specifications Gross Capacity Range
0 to 3000 lb | 0 to 1361 kg
Specifications Height With Containment Deck
4.50 in | 114 mm
Specifications Industry Standards
Environmental Protection Agency (EPA) | European Conformity (CE) | Occupational Safety and Health Administration (OSHA)
Specifications Number Of Conductors
4
Specifications Output Current
4 to 20 mA
Specifications Scale Frame Height
1.50 in | 38 mm
Specifications Standard Base Sizes
26 x 52 in
Specifications Warranty
5 Year Full Warranty on All Products
Standard Features Standard Features
Rugged steel construction protected by corrosion resistant finish, with polyethylene containment basinFour load cell design means the load can be placed anywhere on the containment platform and does not need to be leveledElectronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acidsLoad cells are mounted outside of spill containment basin to eliminate damage due to chemical spills.Self-locking tare adjustment knob4-20 mA output - scale or loop powered
Specifications Specifications
The Spill Containment Dual Drum Scale must have rugged steel frame that is zinc oxide primed and dry powder epoxy coated. The integral containment deck and basin shall be solid polyethylene. All hardware must be stainless steel. Scale frame height shall not exceed 1.5". Total height with containment deck shall not exceed 7.5". Load cells must be sealed in gasketed PVC enclosure. All 4 load cells shall be located outside the chemical containment basin to eliminate damage due to chemical spills.Scale shall be a Model 4042-26x52⢠(with bladder) as manufactured by Scaletron⢠Industries Ltd., Plumsteadville, PA.Standard Indicator3-1/2 Digit LCD Indicator: Indicator must be electronic with digital display with characters 0.5 inches high, with 0.1 lb. or 0.1 kg resolution and housed in a NEMA 4X, UL approved enclosure. Indicator is required to have 4-20 mA output selectable as scale powered or loop powered, standard. Indicator must have a knob to set tare weight. Accuracy is 0.5% of full scale, or better.Optional Indicators/Controllers4-1/2 Digit LED indicator: Indicator must be electronic with digital display with characters 0.56 inches high and housed in a NEMA 4X, UL approved enclosure. An output of 4-20 mA, 0-20 mA, or -8 to + 12 mA, selectable as scale or loop powered to provide versatility to interface with related equipment, must be standard equipment. Indicator comes with two low level relay contacts, standard. A knob to set tare weights is required. Indicator must be capable of 0.1 lb. or 0.1 kg up to 1000.0 lbs. or kg. Accuracy is 0.5% of full scale, or better.Model 1020⢠5 Digit Controller: Controller must be electronic with a two line, backlit alphanumeric digital display and housed in a NEMA 4X, UL approved enclosure. Available as single or dual channel and capable of displaying two channels simultaneously. A loop powered programmable output of 4-20 mA and four set points per channel must be standard equipment. Indicator must be capable of 0.1 lb. or 0.1 kg up to 3000 lbs. or 1361 kg. Accuracy is 0.25% of full scale, or better.
