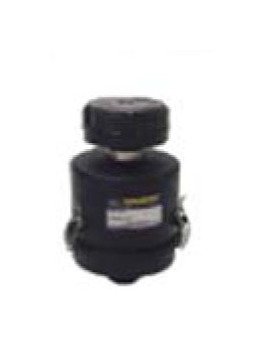

Spinmeister Extreme Duty 1-1/2in Inlet Air Filter with Paper Element
Spinmeister Extreme Duty 1-1/2in Inlet Air Filter with Paper Element
SKU:SPI-aed00c
Enhance air filtration efficiency in high dust environments with the Spinmeister Extreme Duty 1-1/2in Inlet Air Filter. Durable construction, high filtration efficiency, and versatile configurations for precise applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty 1-1/2in Inlet Air Filter with Paper Element
$129.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty 1-1/2in Inlet Air Filter with Paper Element
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your filtration system with the Spinmeister Extreme Duty Inlet Air Filter. Designed for high dust environments, this filter boasts 85% efficiency at 15 microns. Featuring a durable composite pre-cleaner and a 99%+ efficient pleated paper element, it prolongs filter life and ensures clean air flow. The heavy gauge carbon steel housing with low pressure drop bracket enhances durability. Spinmeister offers multiple configurations and media options for specific applications, making it a versatile choice for Blowers, Engines, Foundries, and more.
Product Specifications
Dimensions Dimension A
10-3/4 in
Dimensions Dimension B
1-5/8 in
Dimensions Dimension C
7 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
3.7 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
1-1/2 in
Specifications Rated Flow
85 scfm
Specifications Type
B
