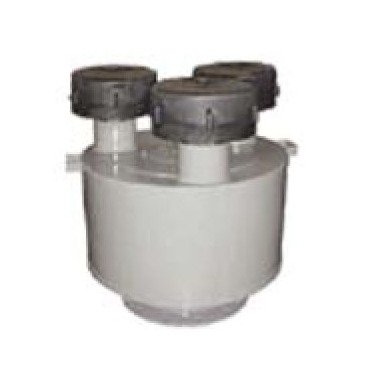

Spinmeister Extreme Duty 10 Inch Inlet Air Filter with Paper Element
Spinmeister Extreme Duty 10 Inch Inlet Air Filter with Paper Element
SKU:SPI-9d18e6
Enhance filtration in high dust environments with the Spinmeister Extreme Duty Inlet Filter - designed for durability and efficiency.
Regular price
$479.99
Regular price
Sale price
$479.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty 10 Inch Inlet Air Filter with Paper Element
$479.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty 10 Inch Inlet Air Filter with Paper Element
$479.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Spinmeister Extreme Duty 10 Inch Inlet Air Filter with Paper Element is designed for high dust environments, significantly increasing the filter element's lifespan. With 85% efficiency at 15 microns or larger, this filter features a centrifugal flow that forces particulates through side louvers before filtering through a 99%+ efficient pleated element. Made of durable composite material, the Spinmeister Precleaner is customizable for specific applications, offering reliable and long-lasting filtration in industries like blowers, cement, engines, fans, foundries, and more.
Product Specifications
Dimensions Dimension A
30-1/2 in
Dimensions Dimension B
6 in
Dimensions Dimension C
28-1/2 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
138 lb
Specifications Connection Style
Flange (FLG)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
10 in
Specifications Rated Flow
2700 scfm
Specifications Type
D
