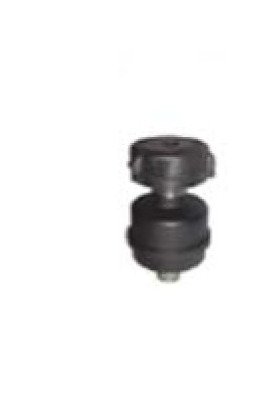

Spinmeister Extreme Duty 3/4 in Inlet Air Filter with Paper Element
Spinmeister Extreme Duty 3/4 in Inlet Air Filter with Paper Element
SKU:SPI-c85478
Enhance equipment lifespan with the Spinmeister Extreme Duty Inlet Air Filter, offering superior 85%+ efficiency at 15 microns. Ideal for high dust environments in various industries.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty 3/4 in Inlet Air Filter with Paper Element
$99.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty 3/4 in Inlet Air Filter with Paper Element
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Spinmeister Extreme Duty Inlet Air Filter with a 3/4 inch outlet offers superior filtration in high dust environments, significantly extending filter element lifespan. Featuring a centrifugal flow that achieves 85% efficiency at 15 microns or larger, it then passes through a 99%+ efficient pleated paper element. Constructed with durable carbon steel housing and a low pressure drop bracket design, this filter provides consistent performance. With applications across industries like Cement, Engines, and Pneumatic Conveying Systems, this configurable filter meets stringent institutional procurement standards for reliability and efficiency.
Product Specifications
Dimensions Dimension A
7.75 in
Dimensions Dimension B
1-1/4 in
Dimensions Dimension C
4-1/8 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
1.5 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
3/4 in
Specifications Rated Flow
30 scfm
Specifications Type
A
